How Robotic Kits Enhance STEM Learning

Robotic kits enhance STEM learning because they turn abstract code into a physical result a student can watch, measure, and correct. A line of Python that moves a real six-axis arm to the wrong spot teaches coordinate systems faster than any slide deck. If you are a teacher, department head, CTE coordinator, or a parent of an ambitious teenager, the practical question is what a kit actually adds over a bare arm, and which tier fits the students in front of you.

This article covers what a robotic kit is, how desktop arms replicate industrial motion, how the software ladder runs from drag-and-drop blocks to ROS 2, and how the WLKATA and Elephant Robotics kits in the RoboticsSelect catalog map to different classrooms.

What is a robotic kit, and who buys one?

A robotic kit pairs a desktop robotic arm or mobile platform with the pieces needed to teach with it: grippers and suction cups, a conveyor or camera, a textbook with lesson sequences, and software that meets students at their level. The difference between a bare arm and a kit is everything around the arm. Typical buyers are K-12 STEM and CTE programs, community-college mechatronics departments, university teaching labs, makerspaces, and serious hobbyists who want a real kinematic arm rather than a toy.

The kits in our robotic kits collection come from two brands. WLKATA builds a tightly integrated ecosystem around its Mirobot, MT4, and Haro380 arms, from single-student kits up to multi-arm simulated production lines. Elephant Robotics focuses on turn-key educational workstations and mobile-manipulation platforms. RoboticsSelect is an authorized dealer for both.

How does a desktop arm replicate industrial motion?

Flexibility in a robot arm is measured in degrees of freedom (DoF), the number of independent joints. A six-axis arm has a rotating base, a shoulder, an elbow, and a three-joint wrist, which is the same layout as the full-size industrial cobots students will meet later. That is why the six-axis WLKATA Mirobot Education Kit is the standard starting point for schools: it teaches the geometry of real cobots at desk scale, and it can approach a point from more than one angle rather than only from above.

The Mirobot also makes inverse kinematics (working out the joint angles needed to put the hand at a chosen point) a concrete lesson. Students can solve it by hand and program joint angles, use the built-in solver and program Cartesian poses, or use the visual interface and skip the math entirely. Comparing the three approaches on the same arm is a core teaching point in WLKATA's textbook.

Why do repeatability and payload matter for teaching?

Repeatability, meaning how consistently the arm returns to the same point, is the spec that separates teaching tiers. The Mirobot, a six-axis arm with aluminum alloy and ABS construction, holds about plus or minus 0.2 mm with a 250 g standard payload (400 g maximum near the desktop) and a 315 mm reach. That is the right tier for six-axis kinematics, demonstrations, and light prototyping.

The WLKATA MT4 Edu Kit trades two axes for double the precision and double the payload: 0.1 mm repeatability, 500 g standard payload (600 g maximum), and a 359 mm reach on a CNC metal frame. Its 4+1 axis palletizer layout keeps the end effector pointing down, which covers most real pick-and-place automation. It is also designed to be disassembled and rebuilt with the included hex tool, so robot mechanics become lesson content. Above both, the industrial-grade Haro380 reaches 0.05 mm with PLC support for automation training.

Kit	Arm and repeatability	Best for
WLKATA Mirobot Education Kit	6+1 axis, 0.2 mm, 250 g payload	Intro classrooms and six-axis kinematics
WLKATA MT4 Edu Kit	4+1 axis metal, 0.1 mm, 500 g payload	Mechanical assembly and Arduino teaching
WLKATA Haro380 Core Kit	6-axis industrial grade, 0.05 mm	PLC, ROS 2, and MATLAB automation training
Elephant Portable AI Educational WorkStation	Desktop arm with built-in touchscreen computer	K-12 programs starting from zero
Elephant UltraArm Conveyor Belt Kit	ultraArm P340 with motorized conveyor	Sorting demonstrations out of the box

Match the tier to the work. Coursework and demos do not need industrial precision; research or repeatable fixture work does. WLKATA's own guidance is that the Mirobot teaches curriculum content, while sub-0.1 mm tasks belong on the Haro380 or a full industrial cobot.

How does the software ladder run from blocks to ROS?

Software ceiling matters more than hardware, because the right kit is the one your strongest student cannot outgrow mid-year. WLKATA's Mirobot platform spans the whole range on one arm: block-based programming (Blockly) for younger students, Python for intermediate coursework, ROS 1 and ROS 2 for advanced robotics classes, MATLAB and Simulink for engineering programs, and G-code for CAM workflows. WLKATA Studio combines Blockly, teach-and-play, Python, and a G-code monitor in one window, and programs can be downloaded to the extender box and run offline.

Elephant's equivalents are myBlockly, a Scratch-style editor, and pymycobot, a Python library that installs with pip and exposes one class per arm. Drag-and-teach is the beginner path on Elephant hardware: press Record, move the arm by hand, stop, then play the trajectory back. At the top of the ladder, WLKATA publishes ROS 2 packages tested on Ubuntu 22.04 and 24.04 with MoveIt 2, and the Elephant LIMO Cobot runs ROS 2 with Nav2 and MoveIt on its Jetson Orin Nano.

What projects can students build with a kit?

Writing code is satisfying, but the moment a physical object moves through a small production line is where the learning sticks. The projects below are the ones the kits are built and documented for.

Sorting by color and code

The Elephant Robotics UltraArm Conveyor Belt Kit runs color-recognition and QR-code sorting from open-source Python programs before students write a line of code, then becomes the baseline they extend with OpenCV to new objects. The conveyor is 800 mm long and the arm has a 340 mm working radius, so the whole setup fits on a classroom desk.

Machine vision

The WLKATA AI Vision Set teaches edge AI on an OpenMV camera that runs vision code onboard, the way deployed systems do. Setup ends with calibrating the camera and robot coordinate frames, which is itself a worthwhile lesson in why a robot's idea of "here" and a camera's idea of "here" differ.

Drawing, engraving, and end-effector swaps

The Mirobot's end effectors swap in about 30 seconds with thumb screws: a parallel gripper, a suction cup with pump, and a pen holder for drawing come in the Education Kit, with a laser engraver, 3D-printer extruder, and small CNC spindle sold as optional tools. Any laser tool runs with the protective equipment and eye protection WLKATA's manual calls for.

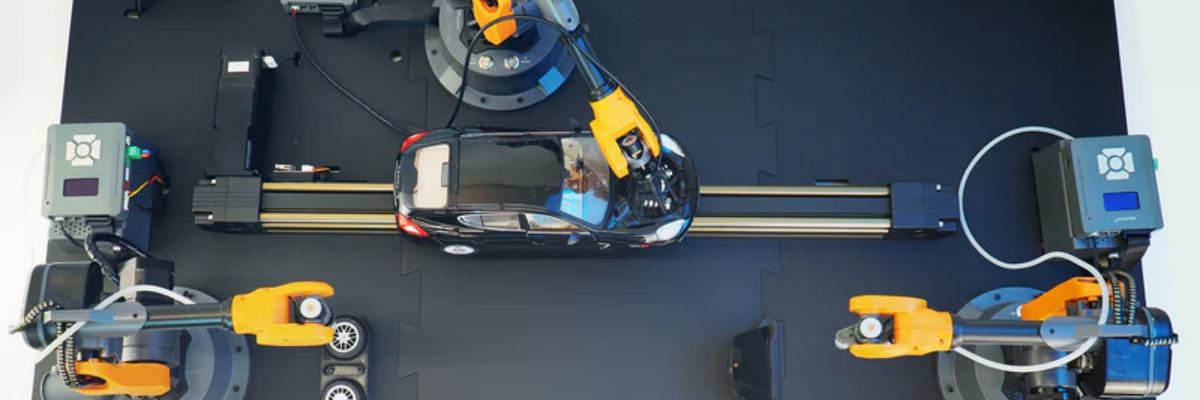

Cells, lines, and mobile manipulation

Once a program outgrows single arms, the next step is a cell: an arm combined with a conveyor, vision camera, and a structured task such as sorting or fruit picking. Full training lines chain multiple stations into a simulated factory for CTE and mechatronics labs; browse them under training cells and production lines. Mobility is the other expansion path: the WLKATA AGV Rover Set puts an arm on a mecanum-wheel vehicle rated for a 10 kg payload, and Elephant's LIMO Cobot arrives with a myCobot 280 arm pre-mounted on a LIMO mobile base for mobile pick-and-place teaching.

Which kit fits which classroom?

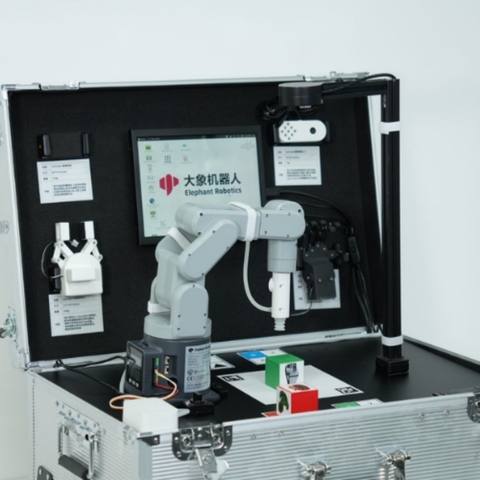

Middle school programs do best with visual programming and guided projects: the Mirobot's Blockly mode, or Elephant's Portable AI Educational WorkStation, which packs a desktop arm, a USB camera, a built-in computer with a 10.1-inch touch display, and an Ubuntu system with ROS 1 and ROS 2 into one unit that fits a standard classroom desk. It supports one-click startup, and Elephant structures its curriculum as a 15-week cycle covering color, shape, feature-point, YOLOv5, and AR and QR code recognition.

High school classes step into Python, machine vision, and Arduino projects, where the MT4 Edu Kit and the AI Vision Set fit. Undergraduate courses lean on ROS, MATLAB, and kinematics work on six-axis hardware, which is the Mirobot Professional and Advanced kits, backed by the standalone MATLAB and ROS 2 textbooks. Industrial training and CTE programs want PLC integration and production-line context, which is Haro380 and training-line territory.

How should a school budget and order?

Plan on one kit per one to two students; WLKATA sizes the Mirobot Education Kit exactly that way. A class of 20 rotating through stations typically needs 4 to 8 kits, not 20. Budget for end effectors, spare parts, and a conveyor or vision add-on, and check bench depth and power outlets at each station. Standard curbside shipping is free to the contiguous 48 U.S. states, and every kit carries its manufacturer warranty with service handled through RoboticsSelect.

Buying with school purchase orders or grant funding? Several Elephant Robotics kits are quote-based by design, and for any multi-kit classroom order we can prepare a single itemized quote covering kits, accessories, and shipping, the format most district and university procurement offices need. Reach out through our contact page with your product list and quantities.

The takeaway

A robotic kit earns its place in a STEM program when the hardware survives students, the software meets them where they are, and the curriculum fills a semester. Start with the arm tier your course level needs, size the order by stations rather than seats, and leave room to grow into cells and mobile platforms. The full picture, including budget tiers and a classroom checklist, is in our robotic kits buying guide.
