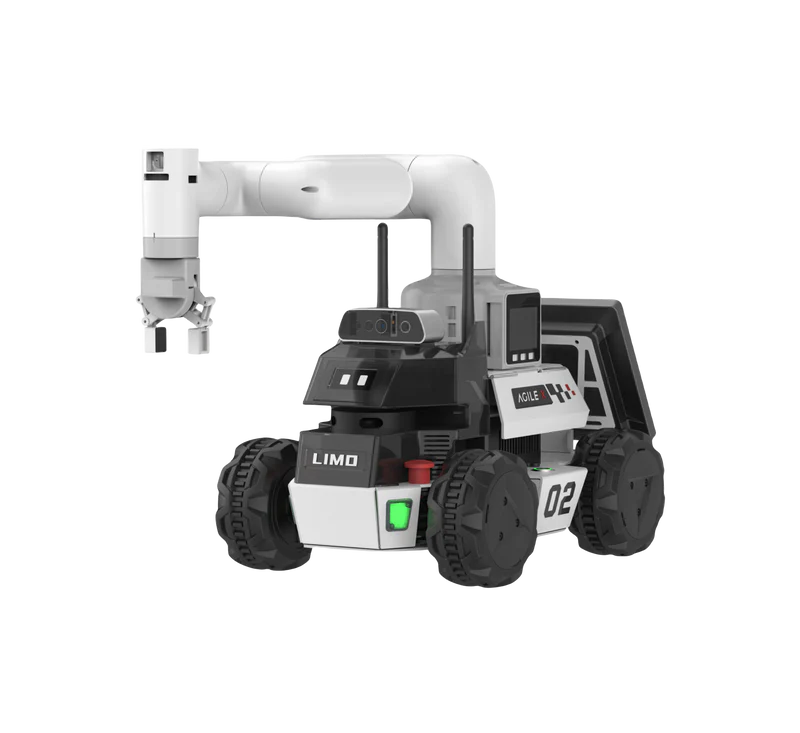

The LIMO Cobot is an autonomous compound mobile robot platform jointly developed by Elephant Robotics and AgileX Robotics. It integrates three core capabilities—mobility, collaboration, and intelligence—into a single desktop-sized system designed for education, competitions, and training applications.

The platform combines two complementary subsystems: the myCobot 280 M5, a compact 6-axis collaborative robotic arm weighing just 850g with a 250g payload and 280mm effective working radius, and the LIMO PRO, an advanced mobile base featuring 4 hub motors with 4 switchable steering modes.

The LIMO PRO incorporates powerful sensor hardware including an NVIDIA Jetson Orin Nano processor, EAI T-mini Pro LiDAR, Orbbec Dabai depth camera, and integrated IMU. These enable autonomous navigation, obstacle avoidance, SLAM mapping, mobile grasping, and visual recognition.

The system's unique 4 steering modes (Ackermann, four-wheel differential, tracked, and omni-directional) adapt to different terrains. The myCobot arm supports various end effectors for precise mobile grasping. The entire system runs on ROS 2 with support for Gazebo, RViz, and Nav2.

Specifications

• Robotic Arm: myCobot 280 M5 – 6 DOF, 850g weight, 250g payload, 280mm effective working radius
• Mobile Base: LIMO PRO by AgileX Robotics – 4 hub motors
• Processor: NVIDIA Jetson Orin Nano (edge AI computing)
• LiDAR: EAI T-mini Pro (environmental mapping and SLAM)
• Depth Camera: Orbbec Dabai (3D perception and visual recognition)
• IMU: Integrated inertial measurement unit for precise motion tracking
• Drive System: 4 hub motors for excellent stability and maneuverability
• Steering Modes: 4 switchable – Ackermann, Four-wheel Differential, Tracked, Omni-directional
• Arm Power Input: DC 12V 5A, Type-C
• Arm Positioning Accuracy: ±0.5mm
• Arm End Effectors: Supports grippers, suction pumps, camera flanges, and custom accessories
• Software Platform: ROS 2 with RViz, Nav2, and Gazebo support
• Programming Languages: Python, C++
• Included Components: LIMO AGV, myCobot 280 M5, IMU, NVIDIA Orin Nano, EAI T-Mini Pro, Orbbec Dabai

Features

• Integrated Compound Robot: Combines a 6-axis collaborative arm (myCobot 280 M5) with an intelligent mobile base (LIMO PRO) in a compact desktop form factor

• 4 Switchable Steering Modes: Ackermann, four-wheel differential, tracked, and omni-directional steering for smooth navigation across diverse terrains—a capability unique among mobile robot platforms

• Autonomous SLAM Mapping: LiDAR, depth camera, and IMU sensor fusion enable accurate environmental perception for autonomous navigation

• Intelligent Obstacle Avoidance: Safe, autonomous task execution in complex and dynamic spaces through real-time environmental sensing

• Precise Mobile Grasping: Multiple end effectors allow the arm to perform pick-and-place, sorting, and manipulation tasks while the base navigates

• NVIDIA Orin Nano Edge Computing: Powerful onboard processing for real-time visual recognition, AI inference, and autonomous decision-making

• Full ROS 2 Ecosystem: Gazebo simulation, RViz visualization, Nav2 navigation stack, and move_base integration for comprehensive development

• Modular & Versatile: Supports robotics education, competition preparation, hands-on training, warehouse logistics simulation, and commercial prototype demonstrations

• Comprehensive Learning Resources: Dynamic video tutorials and in-depth text documentation for guided, step-by-step development

• Safe Collaborative Operation: myCobot 280 M5 arm features built-in torque sensors for safe operation alongside human operators without safety barriers

Programming Tools and Resources

• Python (pymycobot): Full API library for controlling the myCobot 280 M5 arm—joint angles, coordinates, grippers, and IO. Install via pip. PyPI | GitHub

• ROS 2 (mycobot_ros2): Complete ROS2 package with Gazebo simulation, RViz visualization, and multi-distribution support including a LimoPro Orin Nano branch. GitHub

• ROS1 (mycobot_ros): ROS1 workspace with slider control, Gazebo model following, and keyboard control for the myCobot 280 M5 arm. GitHub

• LIMO Cobot Documentation: Official developer guide repository with comprehensive programming and control tutorials for the complete compound robot system. GitHub

• LIMO ROS2 Docker: Containerized ROS2 development environment for the LIMO platform with SLAM, navigation, and bringup packages. GitHub

• Nav2 Navigation Stack: Full autonomous navigation support with cartographer SLAM, map saving, localization, and path planning via ROS2 Nav2.

• Gazebo Simulation: Complete Gazebo simulation environment for testing navigation, arm control, and compound robot behavior before deploying on hardware.

• myStudio: Firmware management platform for the myCobot 280 M5 arm component. GitHub Releases

• Downloads & Drivers: Drivers, firmware, and documentation available from the official Elephant Robotics downloads page. Elephant Robotics Downloads
