Educational Humanoid Robot: What a University Lab Does

A university buys an educational humanoid robot to give students and researchers a real body to run controllers on, not to put on a demo. In practice the machine spends most of its life on a tether in a padded bay, executing locomotion policies that were trained in simulation the week before. This article covers what that work actually consists of, how a biped fits into a syllabus, what the lab has to provide before the crate is opened, and the support burden nobody quotes for.

For the hardware specifics of the two platforms discussed most often here, see our overview of the Oli EDU humanoid robot and the Tron1 EDU biped robot.

The research a biped platform is actually bought for

Four areas account for most published work on commercial biped platforms, and they suit different hardware.

• Locomotion and whole-body control. Gait generation, push recovery, terrain adaptation. This needs legs, an accurate dynamics model, and low-level joint access. It does not need arms.
• Sim-to-real transfer. Training a policy in Isaac Sim, MuJoCo or Gazebo and deploying it to hardware. The bottleneck is model fidelity, so a manufacturer-supplied URDF that matches the physical robot matters more than any single specification.
• Perception and navigation. Mapping, footstep planning over rough ground, obstacle handling. Often the same code as quadruped work, with a harder balance problem underneath.
• Human-robot interaction. Legibility of motion, shared spaces, handovers. This one needs arms and a torso, and it is the only area where the humanoid form is the research variable rather than a constraint.

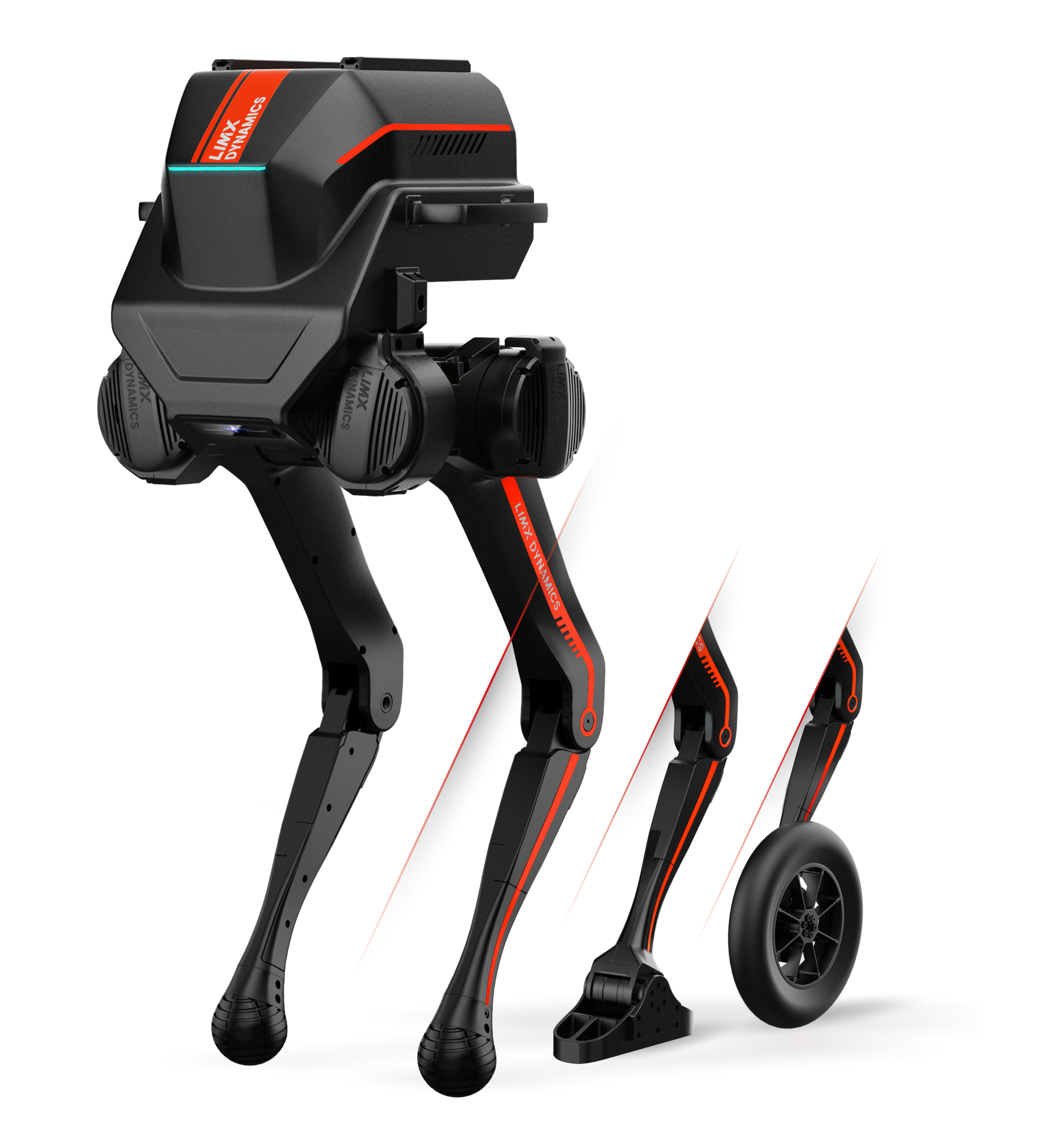

The LimX Dynamics TRON1 EDU multi-modal biped robot is built for the first three. Its envelope reaches 392 by 420 by 845 mm, it weighs under 20 kg, and its distinguishing feature is a 3-in-1 interchangeable foot-end module: point-foot, sole and wheeled. Swapping the contact geometry changes the control problem substantially without changing the robot, which is a genuinely useful property for a teaching lab covering several topics on one budget line. The published limits reflect that: up to 30-degree inclines and 20 cm obstacles in wheeled mode at up to 3 m/s, against under 1 m/s in point-foot or sole mode. It carries up to 10 kg, runs up to two hours on a 46.8 V, 4.5 Ah pack and recharges in about an hour and a half. It costs $25,000 at the time of writing.

Full humanoid platforms when the work includes manipulation

Add arms and both the cost and the research scope change. The LimX Dynamics Oli EDU humanoid robot stands 165 cm and weighs up to 55 kg with battery, carrying 31 active degrees of freedom: seven per arm, six per leg, three at the waist, two in the neck. Single-arm payload is 3 kg, top speed is about 5 km/h, peak joint torque reaches 150 Nm, and a 9,500 mAh quick-swap battery gives about two hours. It lists at $72,000.

Two entries on that specification deserve more weight than the rest during evaluation. The quick-swap battery determines how many experiments fit into a three-hour lab session, since a fixed pack means the robot is a paperweight for the second half. The complete URDF supplied for sim-to-real work, with NVIDIA Isaac Sim, MuJoCo and Gazebo support, determines whether students can prepare policies offline. A shared platform with 20 people queuing for it only works if 90 percent of the debugging happens in simulation.

Cheaper legged platforms carry most of the teaching load

Very few departments should make a biped their first legged robot. A quadruped teaches the same contact dynamics, the same state estimation and much of the same control theory, at roughly a tenth of the price and with a far higher tolerance for student error, because it does not fall over when a controller diverges.

The Deep Robotics Lite3 Basic illustrates the value. At $2,890 it gives 12 degrees of freedom across three joints per leg, 12 kg total mass, a 5 kg rated payload, 2.5 m/s top speed, 40-degree slope capability and a 15 cm step height. It runs Ubuntu 20.04 with both ROS1 Noetic and ROS2 Foxy, exposes control at up to 1 kHz, and is rated IP54. A department can buy several, let undergraduates crash them, and reserve the biped for people who have already earned it.

Where a biped fits into a curriculum

Hardware rarely fails a course. Sequencing does. A legged platform slots naturally into the final third of a robotics sequence, after linear algebra and rigid body dynamics, after a controls course, and after students are fluent in ROS 2. Dropping a humanoid into a second-year module produces demonstrations rather than learning, because the students cannot yet read the state estimator output they are debugging.

The prerequisite is usually the expensive part to arrange. The Mirobot Textbook ROS2 is one inexpensive way to handle it: roughly 280 pages across eighteen chapters covering nodes, topics, services and actions, URDF modelling, MoveIt motion planning, Gazebo simulation and perception integration, aimed at current LTS distributions such as Humble and Iron. It costs $100. Note that about 60 percent of its exercises expect physical arm hardware to verify simulated work, so budget for that alongside it rather than assuming a simulation-only path.

What the lab has to provide before the crate arrives

Procurement paperwork tends to focus on the robot. The recurring problems are environmental.

• Floor space and fall protection. A 55 kg humanoid that falls damages itself, the floor and anything nearby. Labs running full-size bipeds generally work over matting with an overhead gantry and a safety tether, and that rig is a capital item in its own right.
• Battery handling. Multiple large lithium packs need a charging location, a storage policy and institutional sign-off. Quick-swap batteries multiply the count.
• Environmental limits. These are lab machines. The TRON1 EDU is rated for minus 5 to 40 degrees C, the Lite3 Basic for 0 to 40 degrees C, so unheated outbuildings and winter field trials need planning.
• Two-person operation. One person drives, one person watches and holds the stop. Most institutional risk assessments land here regardless of what the manual says.
• Network and compute. Policy training happens off the robot. A GPU allocation and a reliable path for pushing builds to the machine matter as much as the robot itself.

Supporting benches absorb the classes that do not need the expensive robot. The Elephant Robotics Portable AI Educational WorkStation fits compute, input devices and a working surface into a 600 by 400 by 250 mm case weighing 11 kg without an arm, ships with 30 lesson plans and five visual recognition algorithms, and carries a 365-day warranty on structure, power and control systems. Rotating perception coursework onto a bench like that keeps the biped free for the people who actually need legs.

Procurement, warranty and the support burden

Three things decide whether the platform is still in use in year three. Warranty terms come first, and they are shorter than most buyers expect: the Oli EDU carries a 12-month manufacturer warranty, while the Lite3 Basic splits its cover into one year on electronics and six months on joints, legs and battery, dropping to three months once AI Motion Mode is activated. Read the split, not the headline number.

Software access comes second. The TRON1 EDU ships an open SDK with full Python support and works with NVIDIA Isaac, MuJoCo and Gazebo, which is what allows a student to be productive in week two rather than month four. Staffing comes third and is consistently underestimated. A shared legged platform needs a named technical owner with real hours allocated, because calibration, firmware, spare joints and student scheduling do not manage themselves. Budget for the person alongside the robot.

Frequently asked questions

What is an educational humanoid robot used for?

Mostly for locomotion and whole-body control research, sim-to-real policy transfer, perception on rough terrain, and human-robot interaction studies. In teaching it anchors advanced modules where students implement and test controllers on real hardware. It is a research and coursework instrument, and the demonstration value is a side effect rather than the reason for purchase.

Do you need a full humanoid, or is a biped enough?

A legs-only biped covers locomotion, balance, terrain adaptation and sim-to-real work at a fraction of the price. Arms are needed only when manipulation or human interaction is the research question. Many departments buy a biped first and add a full humanoid later, once the group has published work that justifies the larger line item.

What does a university lab need in place before buying one?

Clear floor area with matting, an overhead gantry and tether for full-size machines, a lithium battery charging and storage policy, an approved risk assessment covering two-person operation, and GPU capacity for training policies off the robot. Environmental limits matter too, since these platforms are rated for indoor temperature ranges rather than year-round field use.

How much does an educational humanoid robot cost?

At the time of writing the LimX Dynamics TRON1 EDU Multi-Modal Biped Robot is $25,000 and the LimX Dynamics Oli EDU Humanoid Robot is $72,000. A quadruped such as the Deep Robotics Lite3 Basic sits at $2,890. Add gantry, matting, spares and staff time, which together commonly approach a third of the hardware figure.

Which simulators do these platforms support?

Both LimX Dynamics platforms work with NVIDIA Isaac, MuJoCo and Gazebo, and the Oli EDU ships a complete URDF for sim-to-real transfer. That matters more than any single hardware figure, because most student and researcher hours are spent in simulation. Confirm the model is supplied and accurate before committing to a platform.

Specifying a platform for your lab

Start from the research question and the teaching sequence, then work back to hardware. Locomotion work needs legs, low-level joint access and an accurate model. Manipulation work needs arms and the budget that comes with them. Undergraduate teaching is usually better served by several cheap quadrupeds than one expensive humanoid. In every case, verify the URDF, the SDK and the warranty split before signing.
