How Does a Robot Lawn Mower Work? Inside the Machine
How does a robot lawn mower work? In sequence: it holds a stored map of the property, works out where it is standing on that map, plans a route that covers the grass with consistent overlap, spins a small cutting disc fast enough to shear the tips off the blades of grass rather than tear them, watches for obstacles the whole time, and returns to a charging dock when the battery drops below a threshold. Then it does it again, usually within a day or two.
Nothing in that chain is exotic on its own. What makes the machines interesting is how the four subsystems depend on each other, and how each one behaves when the others degrade.
The four subsystems and what each depends on
Every robotic mower on sale, regardless of brand or price, is built from the same functional blocks. The table shows what each block does and what it needs in order to do it.
| Subsystem | Job | Depends on |
|---|---|---|
| Mapping | Store the boundary, the exclusion zones and the route between separate lawn areas | A guided setup walk, or a boundary wire on older designs |
| Positioning | Answer "where am I on the map" many times per second during a run | Satellite correction, camera feature tracking, wheel or track odometry, an inertial sensor |
| Cutting | Shear the grass tips and mulch the clippings back into the turf | Blade sharpness, motor torque, cutting height setting, how tall the grass was allowed to get |
| Docking and power | Return to base, recharge, resume where it left off | Charge state monitoring, a locatable dock, a clear return route |
Navigation and mapping: how the mower learns your yard

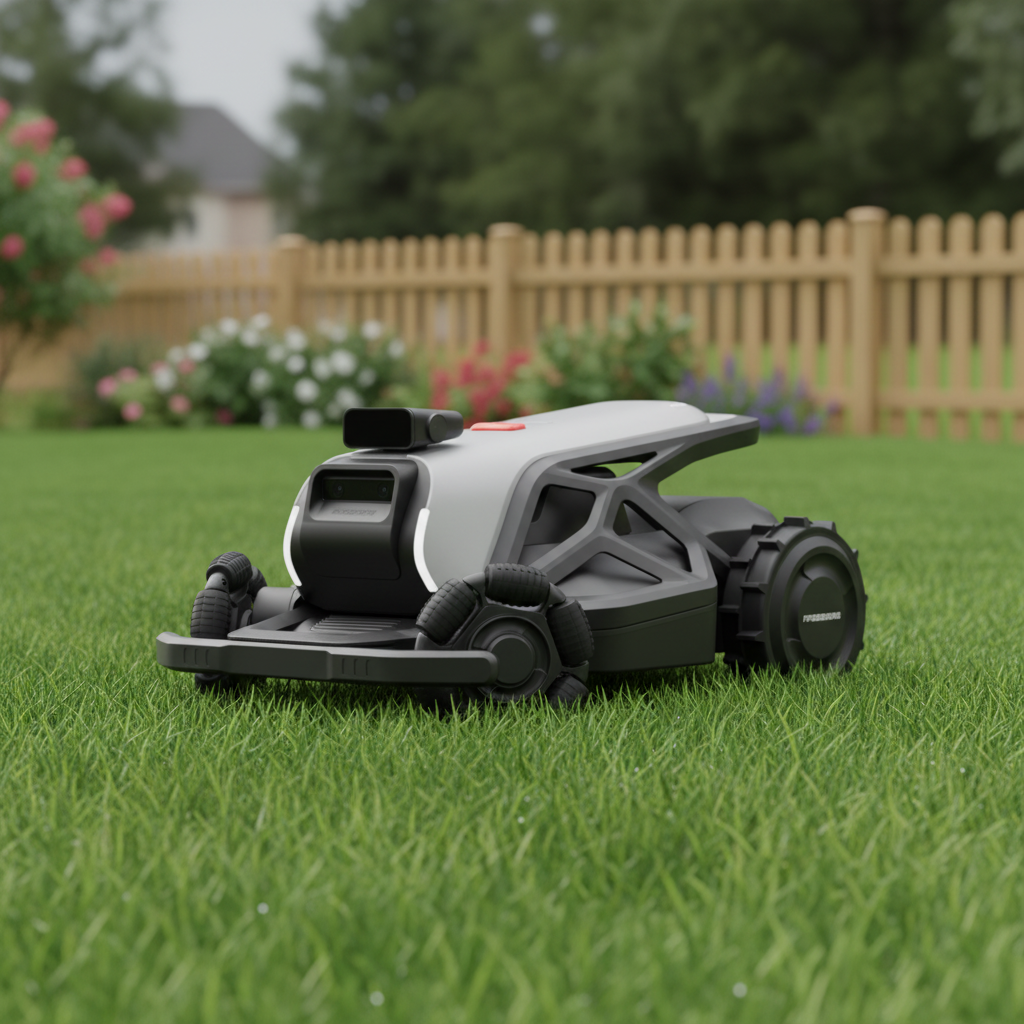

Mapping happens once, at setup. On current wire-free machines the owner drives the mower around the perimeter from a phone app, and the mower records that path as the boundary. Flowerbeds, ponds and tree wells are traced the same way and stored as exclusions. Separate lawn areas get connected by recorded transit paths so the machine can travel between them without cutting the driveway.
The map itself is just geometry. What differs between machines is the coordinate frame that geometry is stored in. Satellite-based systems store the boundary as absolute positions, which means the map stays valid even if the mower is picked up and put down somewhere else. Vision-based systems store it relative to visual landmarks, so the mower has to recognize its surroundings before the map means anything. The TerraMow V1000 Robot Lawn Mower, $1,299 at the time of writing, takes the vision route with a TerraVision 2.0 triple-camera system and no satellite antenna, which is why its installation involves no mounting hardware at all.
Staying on the map: positioning during a run
Mapping is the easy half. The hard part is knowing, continuously, where the machine is inside that map while it drives over uneven ground.
Four sources of information get combined. Wheel or track odometry counts rotations to estimate distance traveled, which is cheap and fast but accumulates error whenever the drive slips. An inertial measurement unit tracks rotation and tilt, which catches turns the odometry would miss. Satellite positioning with RTK correction supplies an absolute fix accurate to centimeters, provided the sky is visible. Camera-based VSLAM tracks visual features frame to frame and fills in when satellites are blocked.
The Lymow One Plus machines run RTK with VSLAM under the Lysee System 2.0 name, with an RTK working radius of up to 3,200 feet, specifically so the mower keeps working under trees and near buildings where satellite signal drops. The AIRSEEKERS TRON Robotic Lawn Mower 2400m² layers 300-degree AI vision on top of Network RTK and VSLAM, with an included base station broadcasting corrections over a 433 MHz radio link. Neither design trusts one source alone, and that redundancy is the reason modern mowers cut in straight parallel lines where earlier machines bounced around at random.
Cutting decks and blades: why the blades are so small
A gas mower swings a single long blade at high tip speed and hurls clippings into a bag. A robot mower does almost the opposite.
Two deck designs dominate. The first is a rotating disc carrying small pivoting razor blades: the TerraMow V1000 uses a three-blade disc with SK5 high-carbon blades, and the AIRSEEKERS TRON uses a 9-inch disc with three swappable dual-layer blades. Because each blade is small and hinged, it swings back on impact with a stone or root instead of transmitting the shock into the motor shaft. The second design uses larger fixed rotary blades: the Lymow One Plus 5A Robotic Lawn Mower, $2,999, runs dual rotary mulching blades in SK5 tool steel and cuts a 16-inch swath, which is roughly double the 203 mm path of the V1000.
Small blades work because the machine never has to cut much. A robot mower that visits every few days removes a short increment each time, so the deck is shearing tips rather than felling tall grass. The clippings that result are short enough to fall between the standing blades and break down there, which is why these machines mulch rather than collect. Cutting height is set in software: 25 to 75 mm on the V1000, 30 to 90 mm on the TRON, and 1.2 to 4.0 inches on the Lymow One Plus pair.
Obstacle detection and the safety chain
Detection runs in layers, because no single sensor catches everything. Cameras identify objects at a distance and steer around them: the TerraMow V1000 uses 3D obstacle avoidance to spot and avoid trees, furniture and pets, and the AIRSEEKERS TRON drives around objects, pets and toys using AI vision. Ultrasonic sensors handle the near field, where a camera's minimum focus distance and a low sun angle both cause trouble. The Lymow One Plus machines list binocular AI vision, five ultrasonic sensors and two Hall sensors as their detection set.
Behind those sits the last line of defense, which is mechanical. Lift and tilt detection cuts blade power when the chassis is raised or tipped past a threshold, and that cutoff is deliberately independent of any software decision about what the object was.
Docking and recharging: how it finds its way home
A mowing run ends on a charge threshold rather than a finished lawn. The mower monitors pack voltage, works out whether it has enough reserve to reach the dock, and heads home before it needs to.
Return navigation reuses the same map. The mower plots a route back through mapped transit paths, then switches to short-range guidance for the final approach, since docking demands accuracy in inches rather than feet. Charging time then sets the rhythm of the whole operation. The TerraMow V1000 recharges in about 120 minutes after up to 150 minutes of mowing. The AIRSEEKERS TRON takes approximately 90 minutes, and its 15,000 mAh pack is swappable. The Lymow One Plus 10A Robotic Lawn Mower, $3,199, charges from 10 to 90 percent in about 90 minutes and reaches up to 1.73 acres per day as a direct result.
Once charged, the machine resumes at the point in the plan where it stopped rather than starting the lawn again. That is only possible because the map and the coverage record persist across the charging pause.
Frequently asked questions
How does a robot lawn mower know where to mow?
From a map it built during setup, combined with live positioning. The boundary is recorded once by driving the mower around the perimeter in the app. During each run the machine locates itself inside that stored map using some combination of satellite correction, camera feature tracking, wheel or track odometry and an inertial sensor, then follows a planned route with consistent overlap between passes.
What stops a robot mower leaving the lawn?
The stored boundary, enforced by the positioning system. On wire-free machines there is no physical barrier, so accuracy is what keeps the mower on the grass, which is why manufacturers invest in RTK correction and camera fallback. Older designs used a buried wire whose induced magnetic field the mower detected directly, a cruder method but one immune to weather and tree cover.
Do robotic lawn mowers collect the clippings?
No, they mulch. Because the mower cuts frequently, it removes only a short increment of growth each visit, producing clippings small enough to drop between the standing grass rather than sit on top of it. No collection box is fitted to any of the machines described here. The practical consequence is that there is nothing to empty.
How does the mower avoid hitting things?
In layers. Cameras classify and steer around objects at a distance, ultrasonic sensors cover the near field where cameras struggle, and contact or displacement sensing catches whatever the first two miss. Lift and tilt detection then cuts blade power mechanically if the machine is raised or tipped. Each layer exists because the layer above it has a blind spot.
What happens if it rains mid-run?
It depends on the model. All four mowers described here carry an IPX6 rating, so water itself is not the problem; traction and turf damage are. The AIRSEEKERS TRON includes a rain sensor and can pause accordingly. Cutting saturated ground risks rutting and tearing, so pausing during heavy rain is a lawn-protection measure rather than a hardware limitation.
Seeing the mechanism in the specification
Reading a robot mower spec sheet gets easier once the subsystems are clear. Navigation entries tell you how the machine handles shade and open sky. Deck width and cutting height tell you how many passes a lawn needs. Charge time tells you the duty cycle. Full specifications for all four machines are on the robotic lawn mower collection page.
