How does a robotic pool cleaner work? Inside the hardware

So how does a robotic pool cleaner work? It is a self-contained, low-voltage submarine. A pump pulls water and debris in through an intake in the base, pushes it through a filter basket, and expels clean water out of the top. Separate drive motors move the robot across the floor and up the walls while brushes scrub ahead of the intake. Everything else, the sensors and the mapping, exists to decide where that assembly goes next.

What follows is each subsystem in turn: what it physically does, and which published spec tells you how well it does it.

What is inside a robotic pool cleaner

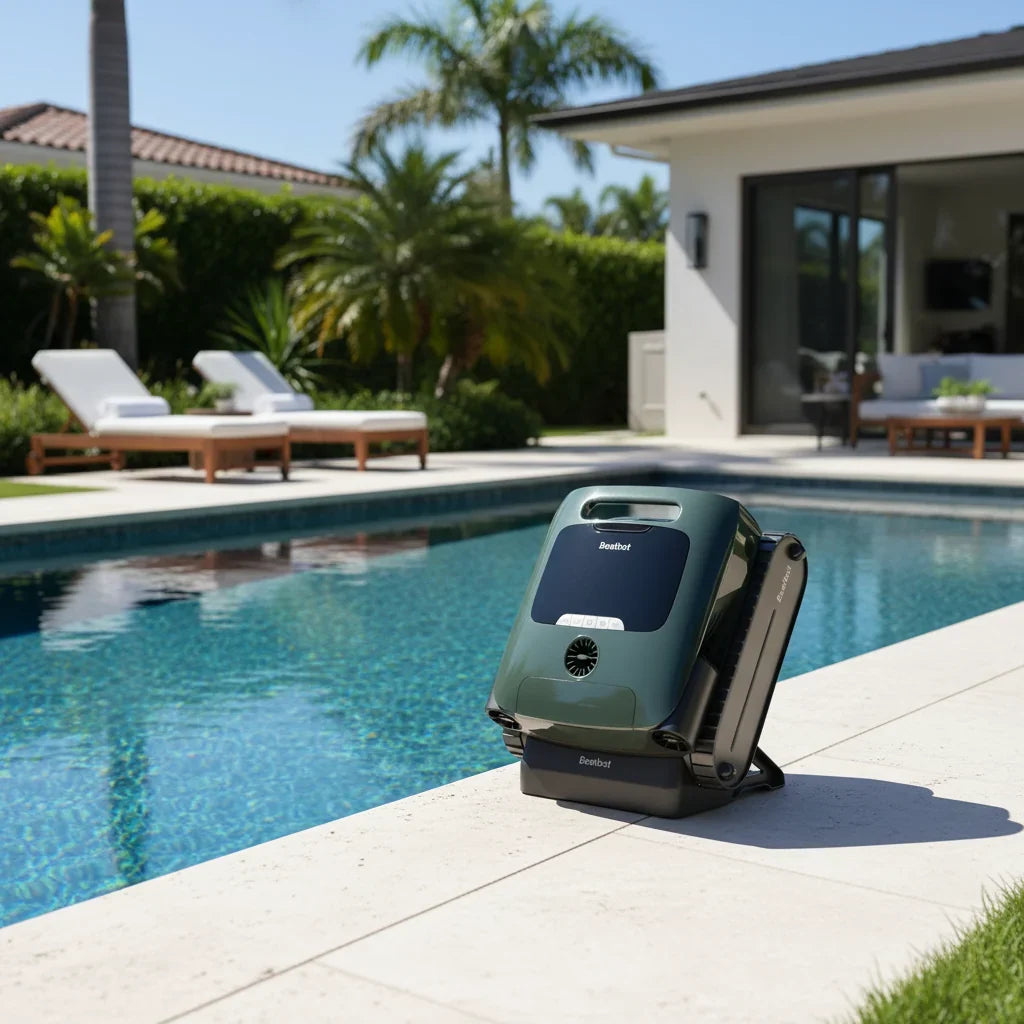

Strip the shell off any of these machines and the same six subsystems appear in different sizes. Motor count is a crude proxy for how much is present: the Beatbot AquaSense 2 Pro AI Robotic Pool Cleaner runs 9 motors, the AquaSense 2 Ultra 11. The extra channels drive additional brushes, pump stages and surface-skimming jets.

The drive system: motors, tracks and brushes

Tracks versus wheels

Two approaches dominate. Wheeled robots use driven wheels with a rubber tread and turn by differential speed; tracked robots run continuous belts over sprockets, spreading load across a longer contact patch. The difference shows on transitions, where a wheel's single contact point can be lifted by a drain cover or tile step while a track stays in contact along its length. Chasing quotes 32 mm (1.26 in) of obstacle clearance and 12 m/min (39.4 ft/min) for the Hydro 4. Speed matters less than it looks, because suction needs dwell time over debris.

What the brushes actually do

Brushes do not sweep debris toward the intake. They break the bond between the pool surface and whatever has attached to it. Algae and biofilm grip plaster, tile and vinyl hard enough that suction alone will not lift them; a rotating brush shears that bond and the pump removes the loosened material a moment later.

Design follows that job. The Beatbot Roller Brush for AquaSense Pro uses wear-resistant PVC, measures 146mm per brush with 48 brush pieces each, and gives a 305mm cleaning width across the dual-brush system. Beatbot rates it for replacement every 18 to 24 months. Brushes are a consumable: bristles shorten, contact pressure falls, and cleaning quality declines before the robot stops working.

Suction and filtration: pumps, impellers and micron ratings

The pump and impeller

The pump is a centrifugal machine. A motor spins an impeller inside a volute housing; the vanes throw water outward, creating low pressure at the impeller eye that draws more water in through the intake below. Chasing uses two turbine centrifugal pumps on the Hydro 4, which is how it reaches 320 L/min (5,070 GPH). Flow rate describes the pump, not the cleaning: it sets how much water passes the filter per minute, but says nothing about whether the robot went over that patch of floor at all.

Filter media and micron ratings

Everything the pump draws in passes a mesh, and the micron rating is the size of its openings. Lower numbers mean finer filtration and more resistance to flow. Standard mesh across this category sits around 180 microns, catching leaves, insects, sand and grit.

Finer stages exist for particles that make water cloudy rather than dirty. The WYBOT C2 Vision pairs a 180 micron box with a 10 micron ultra-fine HEPA element, and Beatbot filters the AquaSense 2 Pro to 150 microns into a 3.7 L basket. The Beatbot Filter Basket for AquaSense is rated at approximately 200 microns and for 12 to 24 months of service. A clogged basket is the most common cause of a robot that has apparently lost suction, because a blocked mesh starves the impeller.

The physics of climbing a wall and holding the waterline

Climbing a vertical surface underwater is harder than it looks, and the pump makes it possible. Water drawn in through the base and expelled from the top creates a pressure differential across the robot: lower underneath, higher above. That differential presses the machine into the wall, giving the tracks enough normal force for traction. Cut the pump and the robot falls off.

Buoyancy fights this the whole way. A sealed body displaces water, so these machines sit close to neutrally buoyant: too heavy and they cannot climb, too light and they cannot hold the floor. Beatbot handles the exit side with SmartDrain on the AquaSense 2 Ultra, releasing trapped water so the unit lifts out lighter.

The waterline is the hardest place to work, because the pressure differential collapses at the surface and the robot sits partly out of the water. Models rated for it use a controlled hover and repeated passes; Beatbot's AquaSense range uses dual-pass scrubbing here. A floor-only robot cannot be made to clean the waterline by running longer, because the mechanism is absent.

How the robot knows where to go

Older machines had no positional awareness. They drove until a bump or tilt sensor fired, turned by a fixed angle, and drove again, relying on statistics to cover the pool. Current machines build and follow a plan.

Three sensing methods do most of the work. Ultrasonic transducers emit a pulse and time its return, giving range to walls and floor; Beatbot markets this as SonicSense ultrasonic pool mapping on the AquaSense 2 Pro, paired with CleverNav path planning. Inertial sensing tracks heading and tilt, so the controller knows whether it is on floor, slope or wall and how far it has turned. Optical sensing adds recognition: the (2026 New) WYBOT C2 Vision Cordless Robotic Pool Cleaner carries an AI camera that hunts for dirt rather than covering ground blindly.

Flagship sensor counts are high. Beatbot publishes 27 sensors on the AquaSense 2 Ultra: an AI camera with dual TOF, two infrared and four ultrasonic. The payoff is coverage per unit of energy, and Chasing states the Hydro 3S reaches up to 95 percent coverage with about 30 percent less overlap than a random path.

Power delivery: floating cable versus lithium battery

Corded robots carry a transformer in a poolside control box that steps mains voltage down to low-voltage DC along a buoyant cable, which buys constant power and unlimited cycle length. The Chasing Hydro 4 Corded Robotic Pool Cleaner uses a 49.2 ft (15 m) cable on an anti-snag swivel, the part that stops a long cable wrapping the robot into a corner.

Battery chemistry and charge cycles

Cordless models carry sealed lithium-ion packs: 13,400 mAh on the Beatbot AquaSense 2 Pro, 11,000 mAh on the Chasing Hydro 3S. Charging is slower than people expect, about 4.5 hours and 4 hours respectively, because fast-charging a large cell generates heat and heat shortens pack life.

Lithium-ion cells lose capacity with each full charge and discharge, and age on the shelf too, faster when stored full or flat. Manufacturers publish charge times rather than cycle counts, so the useful guidance is behavioural: recharge after use, store at a partial charge over winter, keep the robot out of direct sun. Beatbot's extended warranties treat battery cells separately from the rest of the machine, which tells you where wear is expected.

Frequently asked questions

What is a robotic pool cleaner, exactly?

It is an independent cleaning machine with its own pump, filter, drive motors and controller. Unlike suction or pressure cleaners it never connects to the pool's plumbing and does not rely on the pool pump for power or filtration. Debris goes into its own basket, so the pool filter is not doing that work.

How does a robotic pool cleaner know where to go?

Through ultrasonic ranging, inertial sensing for heading and tilt, and on newer models an optical camera. Beatbot uses SonicSense ultrasonic mapping with CleverNav path planning on the AquaSense 2 Pro; the WYBOT C2 Vision adds an AI camera with eight modes and six selectable paths. Older units relied on bump sensors and random turns.

Does a robotic pool vacuum cleaner use the pool's own filter?

No. All filtration happens inside the robot, in a removable basket with its own mesh, which is why micron rating matters: 150 microns into a 3.7 L basket on the Beatbot AquaSense 2 Pro. Emptying that basket after each cycle is not optional, because a blocked mesh reduces flow through the impeller.

How does a pool cleaning robot climb the walls?

The pump does it. Water drawn in at the base and expelled from the top produces a pressure differential that presses the robot to the surface, giving its tracks enough grip to drive vertically. Sensor input tells the controller when it reaches the waterline. Floor-only models lack the pump geometry and tilt sensing to do this.

Which internal parts wear out first?

Brushes and filter baskets, in that order, followed eventually by the battery. Beatbot rates its roller brushes for 18 to 24 months and its AquaSense filter basket for 12 to 24 months depending on debris load. Both are user-replaceable in minutes, and motors and seals typically outlast them.

Choosing a robot once you know how it works

Knowing the mechanism changes what you read on a spec sheet. Flow rate describes the pump, micron rating the filter, obstacle clearance the drive, sensor count the navigation. No single number describes the machine, which is why two robots with identical suction can behave very differently in the same pool. Our companion buying guide on how to choose a robotic pool cleaner covers sizing and shell type; to see the hardware itself, browse the robotic pool cleaners collection, where every unit ships free with the full manufacturer warranty.
