How to set up a robotic lawn mower, step by step
How do you set up a robotic lawn mower? On a normal suburban lot, budget two to three hours: pick a spot for the charging base, mount the RTK antenna where it has open sky, pair the machine to its app, drive one slow perimeter loop so it can build a map, then draw the no-go zones and set a schedule. No trench, no wire spool, no contractor. What it does need is thought about where the hardware goes, because a dock in the wrong place costs more time over the season than the whole install took.
A pre-install checklist worth running before the box arrives
Install day goes fast when the yard is prepared. Walk it once with a phone and settle these seven things.
- Locate outdoor power. The AIRSEEKERS TRON connects to a standard outdoor outlet, and the Lymow One Plus 5A includes a 10 meter extension cable, so measure from your nearest weatherproof receptacle first.
- Look up. Find the most open ground you have, with sky visible in every direction. That is where an RTK reference station wants to live.
- Cut the grass first. These machines trim a little and often; they do not reclaim a hayfield. Take the lawn down with your existing mower a day or two ahead.
- Flag the hazards. Sprinkler heads, shallow lighting cable, exposed roots and drain covers. Marker flags cost a few dollars and save blades.
- Measure the lawn. Capacity is the number you cannot argue with. The TerraMow V1000 vision-navigated mower covers up to about 1,200 square meters, roughly 0.3 acre. The Lymow One Plus 5A is rated for up to 1.1 acres a day, the Lymow One Plus 10A for up to 1.73, and the AIRSEEKERS TRON for lawns up to 2,400 square meters, about 0.6 acre.
- Check the steepest bank. The Lymow One Plus models are rated to 45 degrees, which Lymow also states as a 100 percent incline. The TRON is rated to 65 percent, or 33 degrees, and the V1000 to 18 degrees, 32.5 percent.
- Have network details to hand. Pairing runs over Bluetooth, Wi-Fi or 4G depending on the model, so find the router password before you start.
Step 1: put the charging base on level ground near power
The dock stays put all season, so give it the best spot rather than the nearest. Level ground matters most: the mower drives itself onto the contacts hundreds of times. AIRSEEKERS asks for flat, open ground with a clear two by two meter space in front of the TRON dock, a sensible rule for any brand.
Skip the low corner that holds water after a storm, and the spot that bakes all afternoon. Do not tuck the dock against a fence so tightly that the mower approaches at an angle. Stake it down: the Lymow One Plus 5A ships with four ground stakes and four expansion bolts for the RTK hardware. Run the power cable along a bed edge and pin it.
Step 2: mount the RTK antenna where it can see sky
RTK is what replaced the boundary wire. A fixed reference receiver sits in one known position, compares what it sees from the satellites overhead against that position, and sends the difference to the mower as a correction. That is what lets the mower hold a straight line and respect a boundary drawn on a phone, and all of it rests on the reference station having a clean view of the sky.
Lymow supplies those three mounting options with the One Plus and tells owners to use whichever gives the antenna a clear view of the sky. The stated working radius is up to 3,200 feet, which covers a residential lot with room to spare. AIRSEEKERS takes a different route: the TRON's RTK base station goes in an open spot, can share power with the dock, and handles its own corrections, so there is no monthly fee for an external correction service.
Yards where RTK alone will struggle
Mature canopy, two-story walls beside a narrow side yard and dense evergreen screens all eat sky. There are two answers. The Lymow One Plus pairs RTK with VSLAM under the Lysee System 2.0 name, so it keeps navigating visually when corrections thin out. The TerraMow V1000 skips satellite positioning entirely for its TerraVision 2.0 triple-camera system. If half your lawn sits under trees, that outweighs any other spec.
Step 3: pair the app, then drive the first perimeter

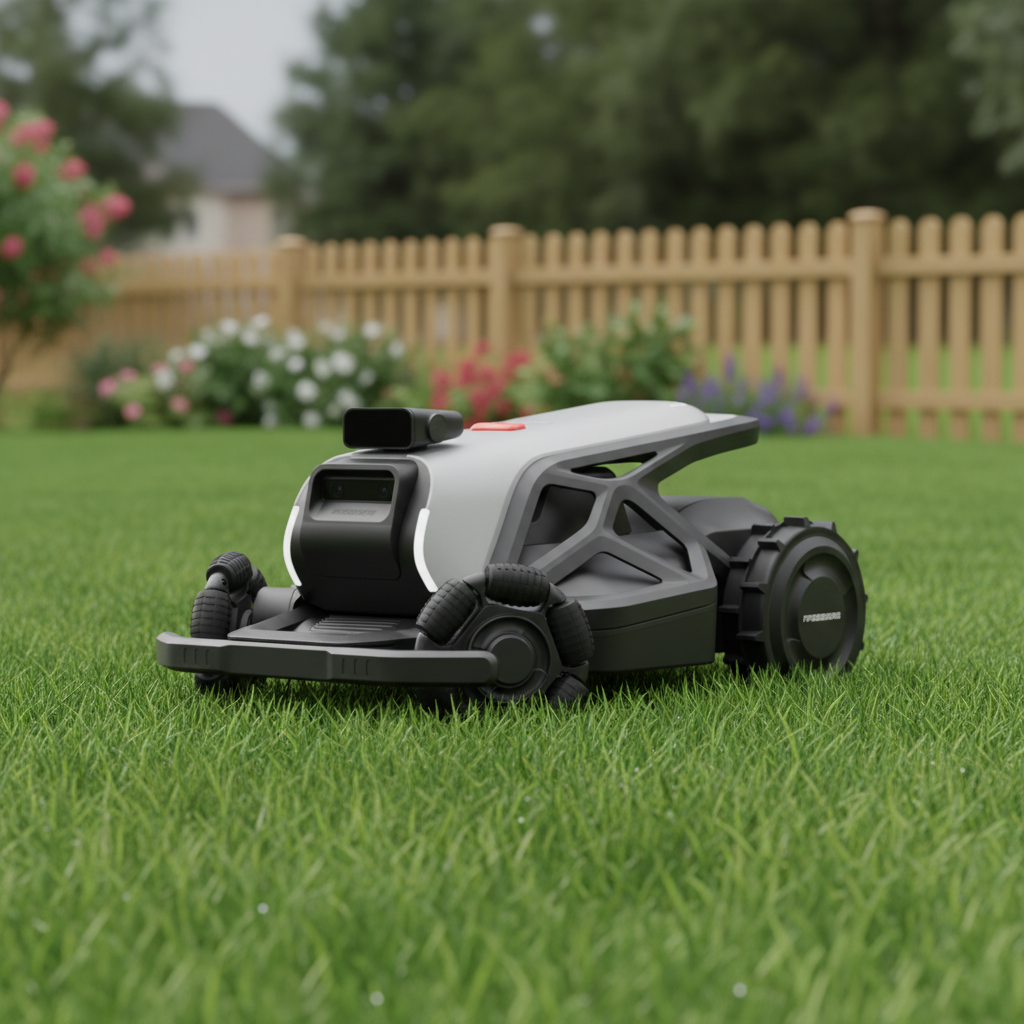

With the hardware placed, the software part is short. Lymow's flow is representative: download the app, pair over Bluetooth, Wi-Fi or 4G, follow the in-app mapping process, then split the map into zones and mark no-go areas around pools, beds and play sets. AIRSEEKERS has you drive the TRON around the yard once from the app; it puts that first run at 30 to 60 minutes for a complex yard. TerraMow uses one-click auto-mapping once its base is placed and connected.
Three habits produce a better map. Walk the perimeter slowly and evenly. Keep the machine roughly its own width inside walls and driveways, since widening a boundary later is easy and repairing a scalped edge is not. Map in dry, even light, because a vision system builds a weaker reference in low sun or glare.
Step 4: set zones, cutting height and the first schedule
Start high: set the deck near the top of its range for the first week, then step down if you want a shorter finish. The Lymow One Plus models adjust from 1.2 to 4.0 inches, the TRON from 30 to 90 millimeters in the app, and the V1000 from 25 to 75 millimeters, which is 1 to 3 inches. Cutting low on the first pass loads the motor and scalps every high spot.
Zones earn their keep on any lawn that is not one rectangle. Split front from back, give the awkward side yard its own schedule, and ring anything you would rather not replace as a no-go area. Set the mower to run often and briefly rather than rarely and long, for the reasons in our article on the benefits of using robotic lawn mowers. Prices below are at the time of writing.
| Model | Navigation | RTK hardware in the box | Cutting height | Max slope | Price |
|---|---|---|---|---|---|
| Lymow One Plus 5A | RTK plus VSLAM (Lysee System 2.0) | Yes, with poles, wall bracket and ground stake | 1.2 to 4.0 in | 45 degrees (100 percent) | $2,999 |
| Lymow One Plus 10A | RTK plus VSLAM (Lysee System 2.0) | Yes, same mounting kit | 1.2 to 4.0 in | 45 degrees (100 percent) | $3,199 |
| AIRSEEKERS TRON | 300 degree AI vision, network RTK and VSLAM | Yes, base station can share dock power | 30 to 90 mm | 65 percent (33 degrees) | $2,099 |
| TerraMow V1000 | TerraVision 2.0 triple-camera vision | None needed | 25 to 75 mm | 18 degrees (32.5 percent) | $1,299 |
What usually goes wrong on install day
Nearly every first-day complaint traces back to the antenna, the dock, or a cutting height set with more ambition than patience.
| Symptom | Likely cause | What to do |
|---|---|---|
| Position drifts or the mower reports a weak RTK signal | Antenna blocked by roofline, canopy or wall, or sited too far out | Move it to open ground, raise it on the supplied pole or wall bracket, and stay inside the stated radius; Lymow gives up to 3,200 feet |
| The mapping run stops partway | Lost connection, or a vision system that lost its reference in poor light | Restart in dry, even light and map a complex yard as separate zones rather than one long loop |
| The mower will not dock cleanly | Dock is not level, or its approach is blocked | Re-level and re-stake the base plate, then clear the approach; AIRSEEKERS specifies a clear two by two meter space in front of the TRON dock |
| Blades bog down on the first cut | Deck set too low for grass that has been growing | Raise to the top of the range, cut daily for a week, then step the height down |
| Charging stops in cold weather | Ambient temperature outside the charging window | Lymow states a charging range of 37 to 134 F for the One Plus, so move the dock or store the machine until conditions improve |
Frequently asked questions
How long does robotic lawn mower installation take?
Two to three hours covers a typical suburban lot, and most of that is the perimeter drive. Siting the dock and mounting the antenna take under an hour if you scouted the yard first. AIRSEEKERS puts the initial mapping run at 30 to 60 minutes for a complex yard, and large properties can spill into a second session.
Where exactly should the RTK antenna go?
In the most open position available, high enough to clear fences, hedges and rooflines. Lymow includes mounting poles, a wall bracket and a ground stake with the One Plus so you can pick whichever gives a clear view of the sky, and states a working radius of up to 3,200 feet. A gable often beats a lawn stake because it clears more of what surrounds it.
Do I need a boundary wire for a robot mower setup?
No. Every mower in this range is wire-free. AIRSEEKERS describes the TRON as needing no buried perimeter wire, and the TerraMow V1000 maps with cameras alone, so it has no antenna either. Boundaries are drawn in the app during the first mapping run and edited afterwards, which is why moving a flower bed no longer means digging up a cable.
Can I install a robot mower myself?
Yes. These are homeowner installs: place the dock, stake it, mount the antenna, pair the app and drive one loop. No trenching, no wiring beyond an outdoor outlet. The steps that reward care are dock leveling and antenna placement. Buying from an authorized dealer also means weekday phone support, 9am to 5pm EST, can help with anything the app leaves unclear.
Choosing a mower that suits your yard
Install difficulty tracks the navigation system far more closely than price. An open lawn rewards an RTK machine with the tidiest coverage. A small, shaded lawn is usually easier with a vision-only mower, since there is no antenna to site. Either way the work is one afternoon, once.
Compare all four models in the robotic lawn mower collection, which ships free, carries the full manufacturer warranty that authorized dealer status brings, and is backed by weekday phone support, 9am to 5pm EST, if install day throws you something this guide did not cover.
