How to build a robot: a realistic first project path

The honest answer to how to build a robot is that you will build two: a first one that teaches you what you did not know, and a second one that works. Most people who set out to build a robot from loose parts stop somewhere between the frame and the first line of motion code, and rarely because the electronics defeated them. They stop because nothing in the pile was designed to fit anything else in the pile. What follows is a path to a moving, sensing machine, with a straight account of where a kit saves you time and where it does not.

Two honest routes, and what each one really costs

There are two ways in. Buy a kit, where the mechanics, electronics, and software already match, then modify it. Or buy parts and make them fit, which is the real engineering exercise and also the one with the highest abandonment rate.

The difference is not mainly money. It is the unglamorous middle: mounting patterns, connector pinouts, voltage levels, cable lengths, and a motor driver rated for a stall current nobody measured that gets hot and shuts down mid-demo. A kit hides that middle. Parts hand it to you in full, which is either the point or the problem depending on what you are trying to learn.

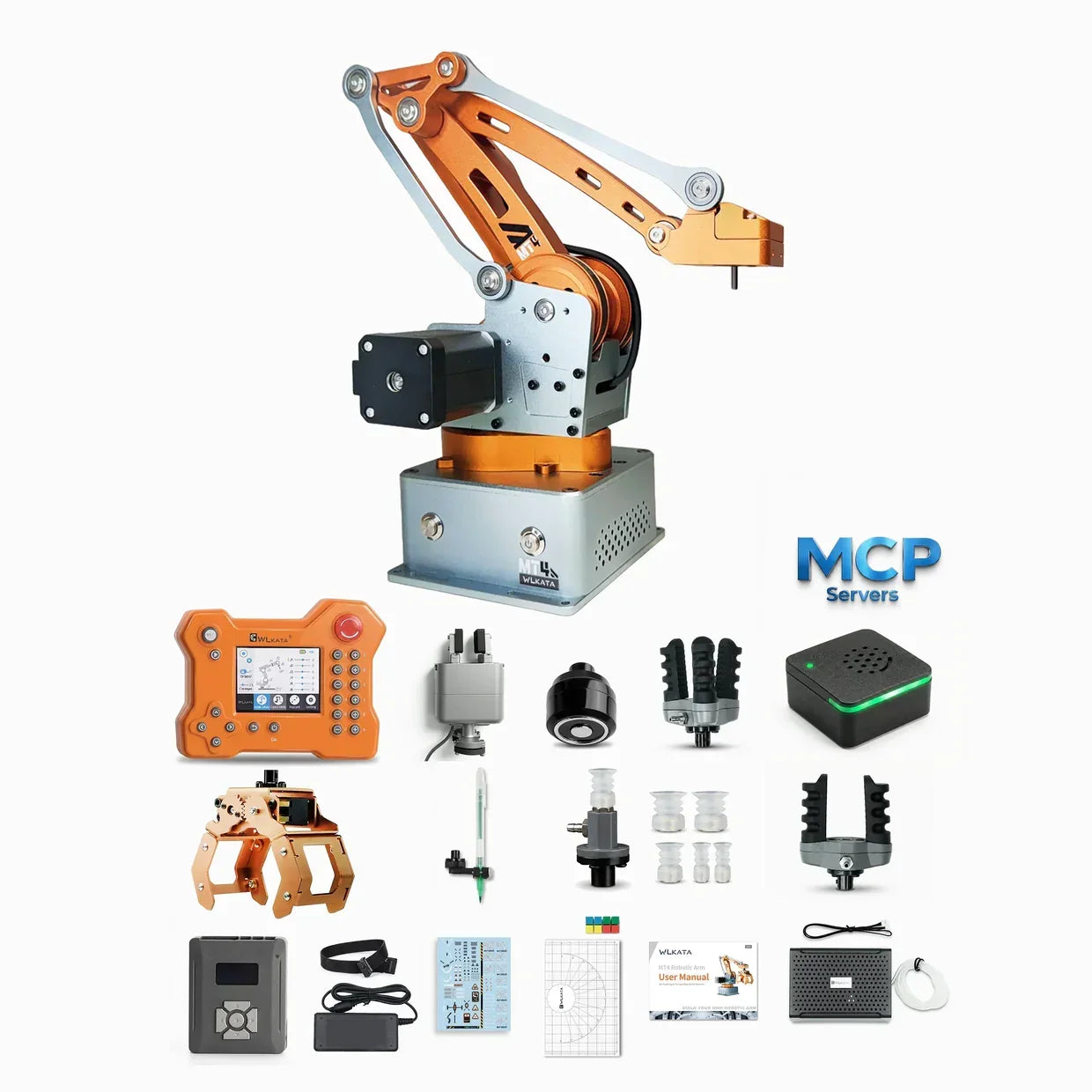

The WLKATA MT4 Advanced Kit is $1,590 at the time of writing, which is roughly what a serious parts path costs once you have bought a frame, a controller, a drivetrain, and a camera. The two columns below are not far apart on price. They are very far apart on where the hours go.

When a kit is the right call

If the goal is to learn programming, kinematics, or machine vision, buy a kit and spend the time on software. If the goal is mechanical design and integration, buy parts and expect the first build to take a season rather than a weekend. Nobody who has costed their own hours claims the parts route is faster.

Start with the frame, because everything else hangs off it

Frames get treated as an afterthought and then dictate the whole project. Motor mounts have to be square, the camera has to sit at a repeatable height, and every sensor you add later needs somewhere to bolt to. Wood and zip ties work for one afternoon. They do not survive the vibration of a motor running for an hour.

T-slot aluminium extrusion solves this by making the frame reconfigurable. The Mini T-slot Starter Kit at $138.60 covers 8x8 mm, 10x10 mm, and 15x15 mm profiles in anodized 6063 aluminium alloy, sized for small builds rather than the 20-series industrial extrusion most tutorials assume. It also mounts to WLKATA arms, conveyors, and rails, which matters if the robot later becomes part of a bigger cell.

One caution worth stating: the individual profile lengths and quantities are not published, so confirm what arrives before designing a frame around specific cut sizes. That is a normal condition of buying parts and a good habit to start early.

Pick the controller before the sensors

The usual order is backwards. People buy sensors they like the look of, then discover the board has no spare interrupt pin, no free I2C address, or not enough current on the 5 V rail. Choose the controller first and let it constrain the sensor list.

For a first build, an Arduino-class board is the right level. You get deterministic timing, direct pin control, and an enormous body of working example code. The WLKATA AI-HUB AI Development Kit at $390 is an Arduino MEGA 2560 platform packaged with 11 common sensors and modules and a textbook, exposing I2C, SPI, UART, RS-485, Wi-Fi, Bluetooth, and I/O expansion, in a 25 x 19 x 10 cm, 750 g unit with a one-year warranty.

It supports TensorFlow Lite, PyTorch Mobile, and OpenCV, but treat that as a doorway rather than a destination. A microcontroller runs small models slowly. Serious perception belongs on a separate computer talking to the board over serial.

Making it move: drivetrain and the power budget

Motion is where a build becomes a robot, and where the electrical work gets real. Two figures decide the design: the mass you are moving and the current the motors draw when stalled. Size the battery and the driver for the stall case, not the running case, or the robot will brown out and reset the moment a wheel catches.

The WLKATA AGV Rover Set at $910 skips that first painful iteration. It uses mecanum omnidirectional wheels, carries up to 10 kg, runs from a 12V 6000 mAh battery, and gives roughly 1 to 3 hours of mixed motion and arm work per charge. The body is 290 x 220 x 85 mm with a 500 x 400 mm platform, programmable in Python or Arduino over Bluetooth or Wi-Fi. The base carries a one-year warranty, with parts covered for three months to a year depending on the component.

Two caveats. No sensors are included, so obstacle detection is yours to add. And while WLKATA arms have official ROS2 packages, rover integration is community-supported rather than packaged by the manufacturer. Plan for that if a ROS 2 navigation stack is the goal.

Vision is where most first builds stall

Adding a camera looks like a small step and is not. Recognition accuracy in a demo video reflects controlled lighting, a fixed camera height, and a background chosen to make the target obvious. Change any one of those and the pipeline that worked yesterday stops working.

Start with the easy wins. Colour tracking, AprilTag and ArUco markers, QR codes, and basic shape recognition are robust, fast, and enough for a pick-and-place task. The Wlkata AI Vision Set at $890 is built around an OpenMV 3 camera with a 640 x 480 colour sensor, and ships with a stand, a light ring, a display, a calibration board, blocks to practise on, and a digital textbook with source code. The camera runs MicroPython while the host runs Python 3. Camera and bracket are covered for 12 months.

The light ring is not an accessory. Controlled illumination is the single cheapest improvement to any vision system, and the reason a marker-based approach beats a neural network on a first build.

Choosing a software stack you can still read in six months

Three stacks cover almost every first project. Block-based tools get something moving in an hour and hit a ceiling quickly. Python with a vendor library is the sweet spot for one machine doing one job. ROS 2 is the right answer when several processes have to run at once and talk to each other, and the wrong answer when they do not.

ROS 2 costs you a Linux install, a build system, and a mental model of nodes, topics, services, and actions before your robot does anything visible. The payoff is real: simulation in Gazebo, motion planning through MoveIt, and a description of your robot in URDF that other tools can read. The Mirobot Textbook ROS2 at $100 runs about 280 pages across 18 chapters against current LTS distributions such as Humble and Iron, and its first six chapters need no hardware at all.

Pick the simplest stack that meets the requirement. Rewriting a working Python script into ROS 2 later is a normal afternoon. Debugging a ROS 2 graph you did not need is a lost month.

Frequently asked questions

How can I build a robot with no engineering background?

Start with a kit and modify it. A matched set of mechanics, electronics, and software removes the integration problems that stop beginners, and leaves you free to learn one discipline at a time. Add a sensor, then a gripper, then a second program. By the third modification you will understand the design well enough to judge whether a parts build is worth attempting.

What is the cheapest way to build a DIY robot that actually works?

Buy the frame and the controller new, and keep the first goal small: a driven base that avoids an obstacle. A T-slot starter kit and an Arduino-class board cover both for a few hundred dollars. Resist adding a camera or an arm until the base drives reliably for an hour without a reset, because every added subsystem multiplies the debugging.

How long does a first robot build take?

A kit reaches a working demonstration in a weekend and a genuinely custom behaviour in a few weeks. A parts build realistically takes a season of evenings, most of it spent on mechanical fit and wiring rather than code. The single biggest schedule risk is waiting on a replacement part, so order spare connectors and fasteners with the first order.

Is a robot building kit better than buying parts?

Neither is better; they teach different things. A kit teaches control, perception, and task design because the integration is already solved. Parts teach integration, which is the harder and less visible skill. Most people should do a kit first, then a parts build for a machine the kit cannot make, rather than starting from scratch.

Where to start

Decide which discipline you actually want to learn, buy the smallest thing that teaches it, and set a first goal you can finish in a week. Momentum matters more than ambition on a first build. Kits, frames, controllers, drivetrains, and vision sets are all in the robotic kits collection, and the WLKATA MT4 Advanced Kit is the usual starting point for anyone who wants a working arm on day one.
