Industrial robotic arms on a desk: ROS 2, MATLAB, PLC
Desktop arms marketed as industrial robotic arms are not scaled-down factory robots. They are teaching and prototyping machines that borrow three things from industry: repeatability tight enough to matter, a rigid metal structure, and the communication interfaces a real cell uses. That last item is the one that decides whether a project transfers to a plant floor. This post explains what ROS 2, MATLAB, and PLC control each actually do on a small six-axis arm, and which one to learn for the work you have.
What industrial grade means on a desktop arm
Three specifications separate a serious small arm from a toy. Repeatability, which is how closely the arm returns to a taught point, and which is not the same as accuracy. Payload, quoted at a rated figure and a maximum that usually assumes a shorter lever arm. And reach, which sets the working envelope before you start adding rails or turntables.

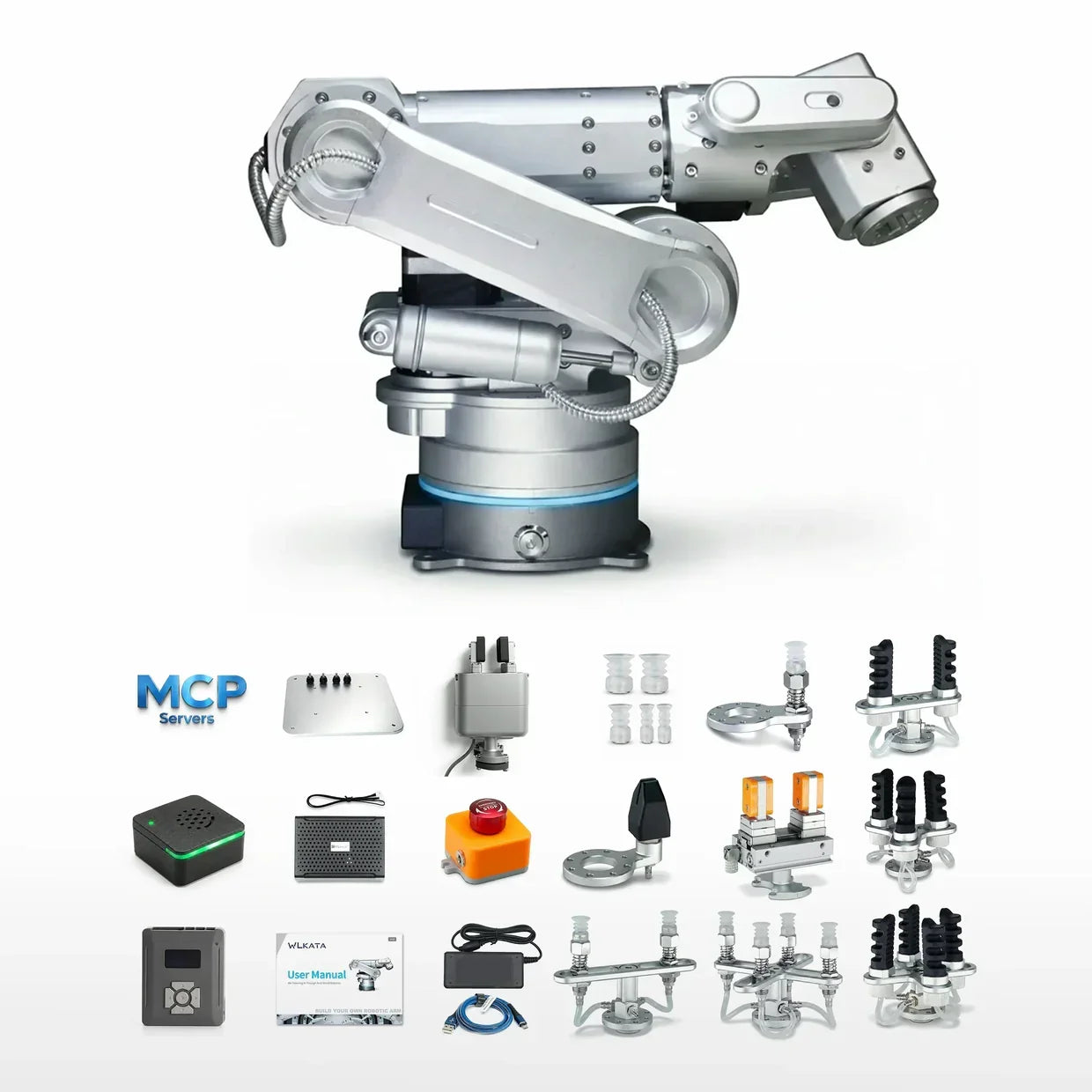

The WLKATA Haro380 is a reasonable reference point, though stock on both Haro380 kits moves, so confirm availability before planning a purchase. It is a 6-axis arm with one additional degree of freedom at the end effector, holds plus or minus 0.05 mm repeatability, is rated at 500 g payload with up to 1000 g at maximum, and reaches 434 mm. The manufacturer warranty runs 12 months.
What is missing compared with a production robot is duty cycle, ingress protection, and certified safety hardware. A desktop arm is not rated to run three shifts beside a person without additional guarding. Treat it as a development platform whose programs and interfaces transfer, not the machine that will do the work.
Core kit or advanced kit: the difference is the accessories
Buyers often assume a higher kit tier means a better arm. On the Haro380 it does not. Both kits use identical arm hardware and identical precision specifications; what changes is what surrounds it. Prices below are as listed at the time of writing.
| Haro380 Core Kit | Haro380 Advanced Kit | |
|---|---|---|
| Price | $4,890 | $5,690 |
| Arm | 6-axis plus 1 DoF, 434 mm reach | Identical |
| Repeatability | Plus or minus 0.05 mm | Identical |
| Payload | 500 g rated, 1000 g maximum | Identical |
| In the box | Arm, essential end-effector tooling, base plate, power adapter, software access | Adds the AI voice control module and the extended educational accessory pack |
| Warranty | 12 months | 12 months |
The practical read: buy the Core Kit at $4,890 if you already own grippers and intend to write your own software, and the Advanced Kit at $5,690 if the extra tooling and teaching accessories save you sourcing time. Neither decision affects what the arm can hold or where it can put it.
ROS 2 is for making several programs cooperate
ROS 2 is not a programming language and not a robot controller. It is middleware: a publish and subscribe layer that lets separate processes exchange messages, plus a set of conventions and libraries built on top. Nodes publish to topics, call services for request and response, and use actions for long-running goals that can report progress or be cancelled.
What that buys you on an arm is composition. A camera node publishes detections, a planning node consumes them, a driver node moves joints, and each can be restarted or replaced without touching the others. URDF describes the robot's links and joints in a form MoveIt can plan against and a simulator can render. The Haro380 lists ROS2 among its supported developer platforms alongside MATLAB, RoboDK, CoppeliaSim, and Omniverse.
Two honest caveats. Standard Linux is not a hard real-time operating system, so a ROS 2 graph is not where you put a joint-level control loop that must never miss a deadline; that stays in the arm's own controller. And ROS 2 imposes a real learning cost before anything visible happens. The Mirobot Textbook ROS2 at $100 covers that ramp across 18 chapters, with the first six requiring no hardware at all.
MATLAB and Simulink are for the maths before the motion
MATLAB occupies a different position. It is where you derive and check the model rather than where you run the robot. Homogeneous transformations, Denavit-Hartenberg parameters, forward and inverse kinematics, Jacobians, workspace and singularity analysis, dynamics, and trajectory planning are all far easier to get right symbolically and numerically before any hardware moves.
Simulink extends that to control design. You build the plant, close the loop, tune it, and run hardware-in-the-loop tests where the model talks to the real arm. That workflow catches instability at a desk instead of at the end of a gripper.
Budget for the toolboxes, not just the arm. The Mirobot Textbook MATLAB at $100 runs about 250 pages and expects the Robotics System Toolbox and Simulink, with the Image Processing and Computer Vision toolboxes for the perception chapters, on MATLAB R2023b or later. Roughly half its exercises can be completed in simulation with no arm attached.
A PLC is for sequencing a cell that must not stop
A programmable logic controller does the job neither of the other two is built for: deterministic, unglamorous sequencing of everything around the robot. It scans its inputs, evaluates logic, and writes outputs on a fixed cycle, every cycle, for years. Conveyor motors, photoelectric sensors, pneumatic valves, stack lights, interlocks, and emergency stops are PLC territory.
In a real cell the PLC rarely computes inverse kinematics. It tells the robot controller which program to run and when, then waits for a handshake signal that the move finished. The robot owns the trajectory; the PLC owns the sequence and the safety chain. That division is why the interface list matters more than the language: the Haro380 lists PLC integration alongside EtherCAT, Modbus, RS485, UART, USB, TCP socket, Wi-Fi, and Bluetooth.
Be precise about what a teaching cell actually is. The WLKATA Logistic Warehouse Cell at $4,520 combines a 4+1 axis MT4 at 0.1 mm repeatability with a 6+1 axis Mirobot at 0.2 mm repeatability, a conveyor with a photoelectric sensor, and a main control box with a touch-screen interface. It is sequenced by that control box rather than by an external PLC. If you need genuine PLC practice, plan to add the controller yourself and wire it to the arm over one of the supported interfaces, and confirm the signal and register details with the manufacturer before specifying the hardware.
A linear rail buys work envelope, not precision
The fastest way to make a small arm useful is to stop asking it to reach further and start moving its base. A seventh axis under the arm converts a fixed hemisphere into a corridor, which is what a real transfer or tending task needs.
The sliding rail set at $740 gives 500 mm of linear travel, carries up to 5 kg of moving load, and adds roughly 600 mm of workspace when the arm is mounted on it. It fits Mirobot, E4, MT4, and Haro380, and carries a one-year warranty.
Read the numbers together, though. The rail is quoted at roughly 0.1 mm linear repeatability while the Haro380 arm holds plus or minus 0.05 mm, so a rail-mounted arm is limited by the rail, not by the wrist. For pick and place that is irrelevant. For a task that needs the arm's full precision, do the precise work with the rail stationary.
Which interface to learn first
Match the tool to the question you are being paid to answer.
| Interface | What it is | Use it when | Wrong tool when |
|---|---|---|---|
| ROS 2 | Message-passing middleware with planning and simulation libraries | Several sensors and processes must cooperate, or you want MoveIt and simulation | One arm doing one repetitive job |
| MATLAB and Simulink | Modelling, analysis and control design environment | Deriving kinematics, tuning a controller, or validating before hardware | Running a production sequence |
| PLC | Deterministic industrial sequencing controller | Coordinating conveyors, sensors, interlocks and uptime | Trajectory planning or perception |
Frequently asked questions
Are desktop industrial robot arms accurate enough for real work?
For prototyping, inspection fixtures, light assembly, and dispensing, generally yes. The Haro380 holds plus or minus 0.05 mm repeatability, which is tighter than most tasks require. The limits are payload and duty cycle rather than precision: 500 g rated capacity rules out heavy tooling, and a desktop arm is not built to run continuously for years.
Can a ROS2 robot arm be controlled from a PLC at the same time?
In practice they occupy different layers, and this is a common architecture. The PLC sequences the cell and signals the robot controller to start or stop a program, while ROS 2 runs perception and planning on a separate computer. Confirm the exact signal mapping and register layout with the manufacturer before specifying either side of that link.
Do I need MATLAB if I already use Python?
Not for moving the arm. Python with a vendor SDK covers motion, and ROS 2 covers integration. MATLAB earns its place when you have to derive and defend a model: Jacobians, singularity analysis, dynamics, and controller tuning. Most university robotics courses expect it, which is the main reason to learn it early rather than later.
What does a seventh axis add to a six-axis arm?
Reach along one direction and a great deal of redundancy. With a linear rail the arm can approach the same point from more configurations, which helps around obstacles and fixtures. It does not improve repeatability. On this rail the quoted linear repeatability of roughly 0.1 mm is coarser than the arm's own figure, so precision work should happen with the rail parked.
Where to start
Pick the interface that matches the job, then buy the arm that speaks it. If the work is research or multi-sensor integration, start with ROS 2. If it is coursework or controller design, start with MATLAB. If it is automation, learn PLC sequencing and treat the arm as one device in a cell. The Haro380 kits, textbooks, rails, and conveyors are all in the WLKATA collection.
