What is a 6 axis robot arm? Degrees of freedom explained

A 6 axis robot arm has six independently driven rotational joints, and six is not a marketing number. It is the smallest count that can place a tool anywhere inside its working envelope while also pointing that tool in any direction. With fewer joints, some combinations of position and angle cannot be reached at all. That fact explains most of an articulated robot's datasheet.

What six axis actually means

An axis is one motor driving one joint through one degree of freedom. Every axis on an articulated robot is a rotation rather than a slide, which is why these machines look like an arm instead of a gantry. Count the motors between the base and the tool flange and you have the axis count.

Manufacturers muddy this. Wlkata specifies its arms as "6+1", where six are positioning axes and the plus one is the gripper opening and closing. A jaw is a degree of freedom in the strict sense, but it moves nothing through space. Read the first number as reachability, the second as tooling.

Industrial six-axis joint layout

Nearly every six-axis arm ever built, from a desktop unit to a spot welder the size of a car, uses the same joint order. Vendor names differ; the geometry does not.

Learn the split as a split. Axes one to three are the arm and set where the wrist centre sits. Axes four to six are the wrist and set which way the tool points once it arrives.

Why six is the minimum for arbitrary position and orientation

Any rigid object in space has exactly six degrees of freedom. Three describe where it is: left and right, forward and back, up and down. Three more describe how it is turned: roll, pitch and yaw. Nothing else is needed to specify a pose, and nothing can be dropped.

A robot buys one of those freedoms per actuated joint. With six there is generally one set of angles for a wanted pose, or a handful of equivalents such as elbow-up and elbow-down. With five, one freedom is not yours to choose: the arm reaches the point but arrives at whatever angle geometry dictates. With seven, a spare joint holds the pose while the elbow shifts to dodge an obstacle, which is called redundancy.

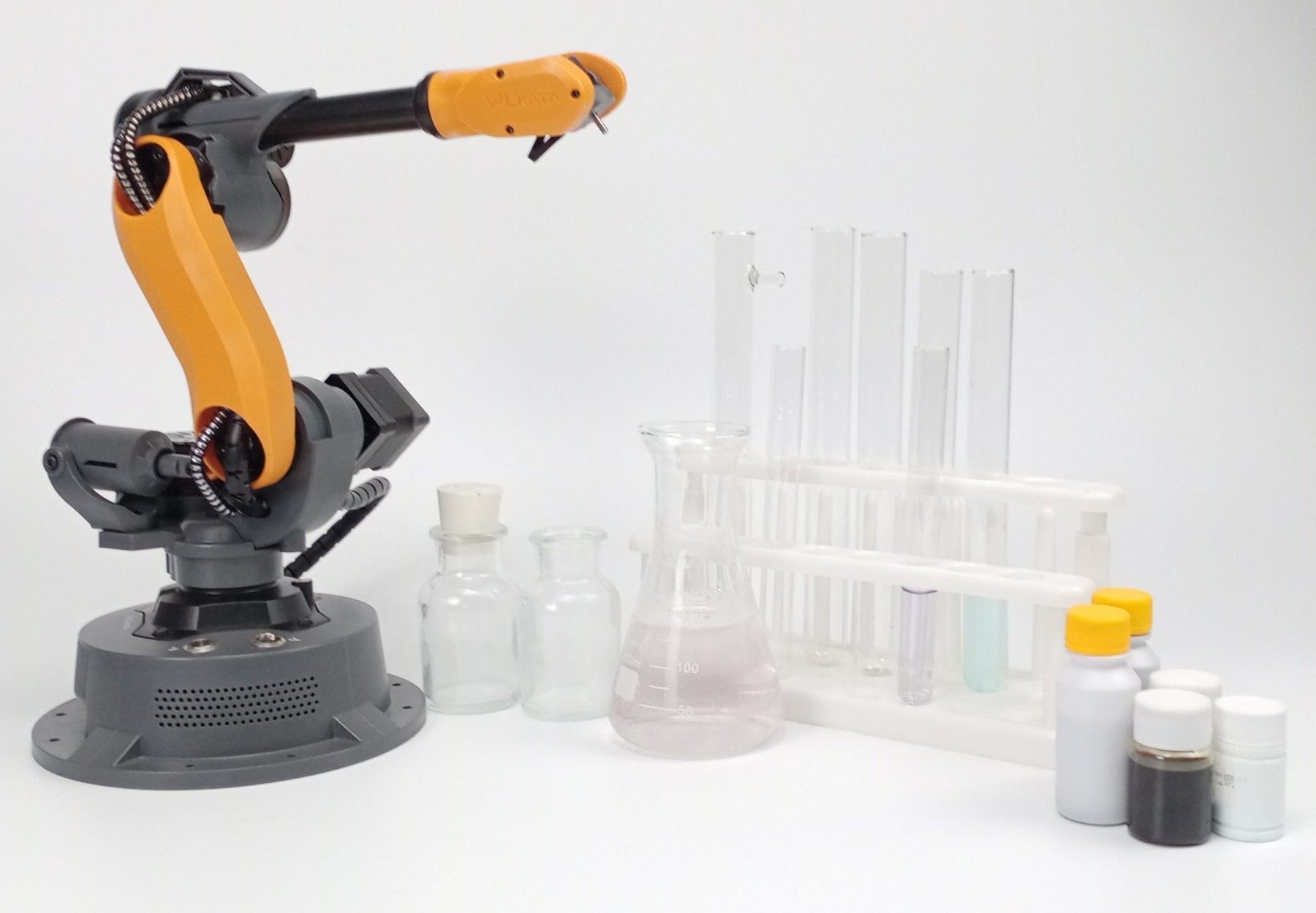

Six is the point of balance. It is the fewest joints giving complete control of a pose, and each joint past it buys flexibility rather than capability. The WLKATA Mirobot Professional Kit, $1,790 at the time of writing, is that balance in desktop form: six positioning axes, 315 mm of reach, 0.2 mm repeatability.

What you lose with four axes

Four-axis arms are not cut-down six-axis arms. They use a different geometry chosen on purpose, usually a SCARA or palletizer linkage, and within the tasks they suit they beat a six-axis arm on stiffness, speed and price.

A palletizer holds the tool flange vertical mechanically, through the linkage itself. The four freedoms you keep are position in x, y and z plus rotation about the vertical. The two you surrender are tilt: no pitch, no roll. Pick a block off a table, turn it, set it down elsewhere, and four axes do that perfectly. Ask for a connector seated fifteen degrees off vertical and the arm cannot.

That trade often favours the buyer. The WLKATA MT4 Advanced Kit is $1,590 and specified at 0.1 mm repeatability, 500 g standard payload, 600 g maximum, up to 359 mm of reach and about 3.0 kg of mass. Its six-axis stablemate is less repeatable and carries less. Rigidity explains it: fewer joints stack fewer compliant elements in series, and a fixed vertical tool axis loads the structure identically every time.

Singularities: the poses where an arm runs out of options

A singularity is a configuration in which two of the arm's axes line up, so between them they produce motion in one direction instead of two. At that instant the arm has effectively lost a degree of freedom, even though all six motors are present and working.

Here is why it hurts. Running a straight-line move, the controller solves continuously for the joint speeds producing the commanded tool speed. Near a singularity that demand climbs steeply, heading for infinity at the singular pose itself. Controllers answer three ways: fault out, slow the path to keep joints inside limits, or let a joint snap around at speed. The third startles people. It is arithmetic, not a fault.

Three families show up on a six-axis machine. A wrist singularity occurs when axis five sits near zero, putting axes four and six on one line so both do the same thing. A shoulder singularity occurs when the wrist centre passes over the axis one centreline, leaving the base nothing useful to steer with. An elbow singularity occurs near full extension.

Handling them is unglamorous and effective: move through the region in joint space rather than commanding a Cartesian line, shift the fixture a few centimetres so the path avoids the zone, or tilt the tool so axis five never sits at exactly zero. Hearing a singularity coming before the fault code appears is one of the more durable skills a desktop arm teaches.

What payload and reach actually mean

Both figures are honest and both get misread. Payload is the mass carried at the tool flange, and the gripper counts toward it. An arm rated at 250 g wearing a 150 g gripper has 100 g of workpiece capacity, not 250 g.

Payload also falls away with distance and speed. Torque is force times lever arm, so a load held far from the flange stresses the wrist far more than the same load held close, and acceleration compounds it. Hence the second, higher figure with a condition attached: Wlkata rates the Mirobot at 250 g standard and 400 g maximum when the load moves near the desktop.

Reach is the radius from the axis one centreline to the furthest attainable point, measured in the best posture with no tool fitted. Usable volume is always smaller: a dead zone near the base the arm cannot fold into, and an outer band too near the elbow singularity for straight-line motion.

The WLKATA Haro380 Core Kit shows what money buys inside the same axis count: 434 mm of reach, 500 g rated payload with 1,000 g possible under specific conditions, and repeatability of plus or minus 0.05 mm. Its degrees of freedom are identical. The gains sit in bearings, gearing, structure and control.

Degrees of freedom on a compact arm

Small arms show why axis count alone says little.

The Elephant Robotics myArm C650, $859, has six degrees of freedom and expands to seven, but it is not built to lift things. It is a hand-operated control device that captures motion and streams it at 50 Hz to drive another robot in real time, with about 250 mm of reach, roughly 0.5 mm repeatability and a 200 g rated payload. Same axis count as an industrial arm, entirely different job.

Frequently asked questions

What is an articulated robot?

An articulated robot has only rotary joints, connected in series so each link swings relative to the one before it. Six-axis arms qualify, and so do four-axis palletizers. The alternatives are Cartesian gantries, which slide along straight rails, and delta robots built from parallel linkages. Articulated designs give the widest range of orientations for a given footprint.

Is a 7 axis robot arm better than a 6 axis robot arm?

Better at different things. A seventh joint makes the arm redundant, letting it hold the tool in one pose while shifting its elbow to dodge an obstacle or step around a singularity. That flexibility costs money, mass and calibration effort, and it complicates the inverse kinematics because no unique solution exists. Six axes remain the standard.

How many degrees of freedom does a human arm have?

Seven from shoulder to wrist: three at the shoulder, one at the elbow, one for forearm rotation and two at the wrist. That extra joint over a standard robot is why a person can keep a full glass level while swinging their elbow around. The hand adds many more freedoms again.

Does more reach mean a bigger workspace?

Only in proportion, and never by as much as the number implies. Reach describes a radius measured in the arm's best posture with no tool attached. Real working volume is a hollow shell rather than a sphere, with a dead zone near the base and an outer band too close to the elbow singularity for controlled straight-line motion.

What happens if a robot hits a singularity mid-program?

The controller decides, and there are three usual outcomes: a protective stop with a fault code, an automatic slowdown of the whole path, or a rapid flip of one joint as it swings to the alternative solution. None damages a well-built arm, but all three ruin the cycle. The fix is to reroute the path or move the fixture.

Matching axis count to the job

Start from the tasks rather than the spec sheet. If every part is picked and placed flat, four axes will be stiffer, faster and cheaper. If any operation needs the tool tilted, six axes are the entry point rather than an upgrade. Then compare repeatability, rated payload with gripper mass subtracted, and usable envelope rather than headline reach.
