Quadruped Robots: What Changes for Buyers by 2029

If you are budgeting for quadruped robots on a three-year horizon, the useful question is not which capability gets demonstrated on video next. It is what changes about owning one: what the entry price does, what arrives fitted as standard, what you integrate yourself, and who signs off before the machine walks unescorted. This is a buyer's read on each, written against the hardware in our catalog today. For the research view, our earlier piece on future trends in quadruped robotics technology covers that ground.

The entry price has already fallen, and the floor is still moving

Five years ago a walking quadruped with an open SDK was a six-figure research purchase. Today the Deep Robotics Lite3 Venture is $6,480 at the time of writing, carries 4.5 kg of rated payload and covers up to 4 km on a 28.8 V, 4.4 Ah hot-swappable pack. That is a maintenance-budget number rather than a capital-committee number, and the distinction changes who can authorize a purchase.

Two forces push that floor down and they behave differently. Actuator manufacturing is scaling, which lowers cost steadily. Perception silicon falls faster but in steps, as each generation of embedded AI module lands. Expect bare platforms to drift down and sensed platforms to drop in jumps.

Perception hardware stops being an upgrade

Right now LiDAR is still a line item. The Deep Robotics Lite3 LiDAR is $18,270 against $12,510 for the camera-based Pro, and the scanning head costs payload as well as money: rated payload drops to 2.5 kg and weight rises to 13.5 kg including battery and LiDAR.

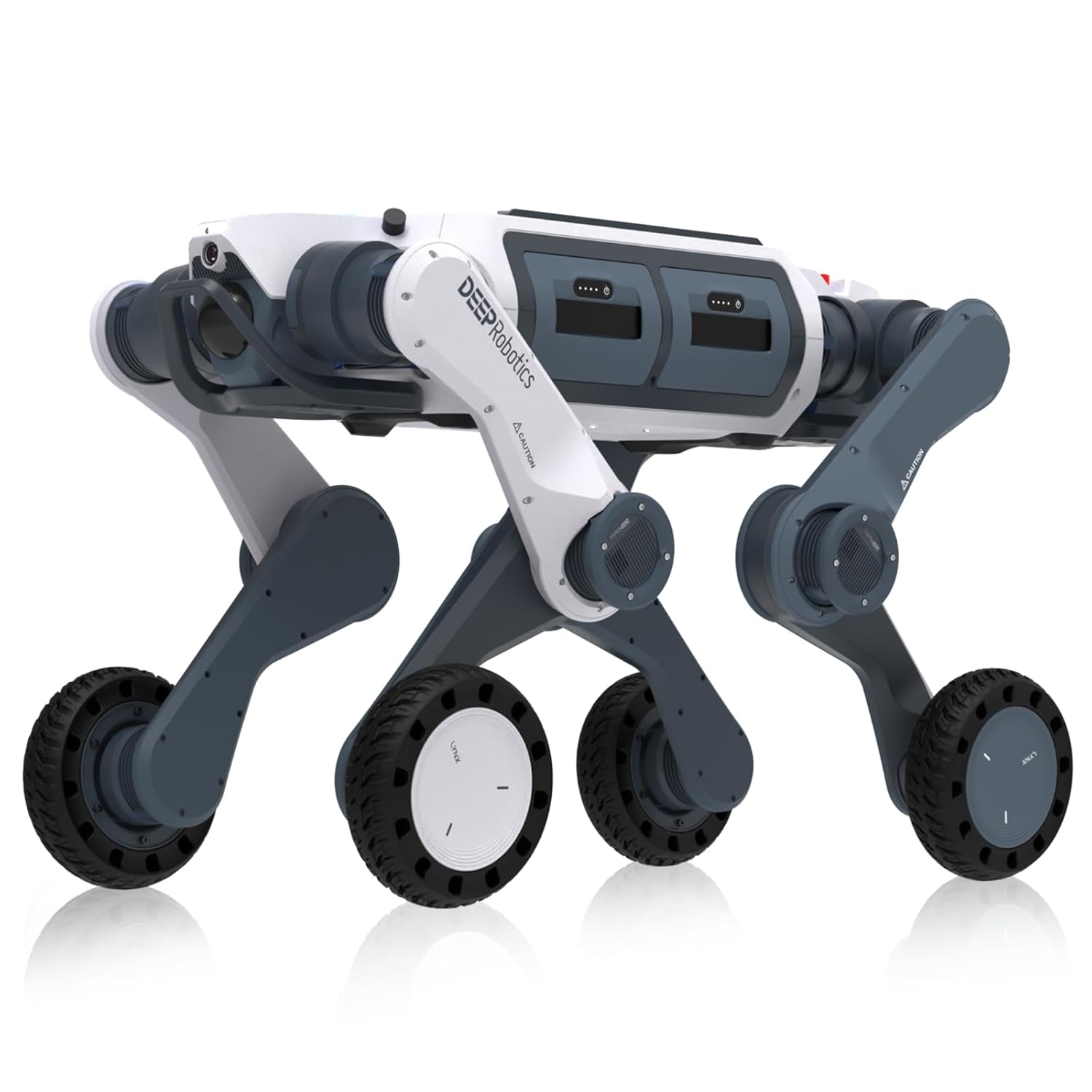

The top of the range shows the direction. The Deep Robotics Lynx M20 Pro does not treat perception as an option: dual 96-line LiDAR units with a 360 by 90 degree field of view producing roughly 860,000 points per second, plus dual wide-angle cameras, with SLAM, autonomous navigation and omnidirectional obstacle avoidance built in.

Comparing platforms on the presence or absence of LiDAR will therefore stop being useful. The comparison shifts to point density, field of view, and whether the manufacturer ships a navigation stack that uses the data or merely publishes it.

Payload modularity becomes the specification that decides purchases

Buyers currently compare speed, slope and step height. Those numbers have converged: across the Lite3 family, from the $4,968 Basic AI to the $18,270 LiDAR variant, the figures are identical at 2.5 m/s, 40 degree slopes and 15 cm steps as standard. When four products in one family share a mobility specification, it has stopped being a differentiator.

What separates them is what they can carry and power. The Lite3 Pro provides 12 V and 24 V rails on the back deck with M5 threaded inserts at 10 cm spacing. The Lynx M20 Pro provides 24 V or 72 V at up to 300 W, a 15 kg rated payload and a 50 kg maximum static load, and Deep Robotics publishes accessory mounts for thermal cameras, gas sensors and pan-tilt-zoom heads.

That is modularity in the sense that matters commercially: documented mechanical, power and data interfaces. Payload ecosystems will become the thing buyers shop for, much as a work truck is chosen on what fits the bed rather than the engine. Ask for mounting drawings and a power budget before you ask about top speed.

Autonomy moves the cost from the hardware to the software

The hardware to walk a route autonomously exists and is affordable. What remains expensive is teaching the route, keeping the map valid as the site changes, and deciding what the machine does when something is not where the map says it is.

Deep Robotics gives the Lynx M20 Pro a teach mode in which operators define patrol boundaries and the robot then navigates them autonomously, naming power inspection, substation inspection, pipeline patrols and perimeter security as target applications. That is the state of shipping products: taught routes, not open-world autonomy.

The three-year change here will be commercial rather than technical. Fleet management, route authoring and data pipelines are natural subscription products. Ask which capabilities are perpetual with the hardware and which sit behind a recurring license, because that question is cheaper before purchase than after.

Battery swap and the uptime arithmetic

Endurance has barely moved and probably will not, because a legged robot spends most of its energy holding itself up. The Lite3 family runs 1.5 to 2 hours per charge. The Lynx M20 Pro manages up to 3 hours and 15 km unloaded, dropping to 2.5 hours and 12 km at rated load, and charges in about 1.5 hours per battery.

Since chemistry will not rescue anyone, the industry is solving uptime through swapping and docking. The Lite3 packs are hot-swappable and the Lynx batteries charge fast enough to rotate through a set. What is missing at this price tier is autonomous docking, and it is the capability worth watching most closely, because it separates a robot that saves a walk from one that saves a shift. Until it is standard, size deployments around laps per charge.

Quadrupeds and bipeds are converging

The legged category is blurring, and that affects what belongs on a shortlist. The LimX Dynamics TRON1 EDU Multi-Modal Biped Robot is $25,000 and ships with three interchangeable foot modules: point-foot, sole and wheeled. One chassis, 854 mm tall, under 20 kg, carrying up to 10 kg, running more than 2 hours on a 46.8 V, 4.5 Ah pack.

Modular feet on a research biped and modular payloads on an inspection quadruped are the same idea from two directions: locomotion mode becomes a configuration choice rather than a product choice. TRON1's maximum incline of about 15 degrees against the quadrupeds' 40 degrees, for the same 15 cm step height, shows the trade. Legs in a row still beat legs in a line when the ground is bad.

At the far end of the trend, the LimX Dynamics Oli EDU Humanoid Robot is a 165 cm, 55 kg platform with 31 active degrees of freedom, 3 kg of single-arm payload and joint torque up to 150 Nm, running about 2 hours on a 9,500 mAh quick-swap pack. It exists for embodied AI research, not patrol duty.

For inspection and patrol work over the next three years, four legs remains the right answer. Humanoids are built for manipulation in spaces designed for people, which is a different problem from carrying a sensor along a route.

Regulation, insurance and who signs off a commercial deployment

This is the part buyers are least prepared for, and the one with the least published guidance. Five things are already clear from how deployments get approved.

• Nobody will certify the robot for you. Nothing in our quadruped range carries a hazardous-area certification, so a classified-zone deployment is a site risk assessment, not a product purchase.
• Ingress ratings get scrutinized. The Lynx M20 Pro is rated IP66 and specified from -20 C to +55 C. The Lite3 Pro is rated IP54. Those describe different deployments, and a safety officer will notice.
• Insurance follows precedent, and precedent is thin. Expect to explain the machine, the route, the failure modes and the escort arrangements to an underwriter who has not covered one before.
• Warranty is shorter than the deployment. Deep Robotics warrants Lite3 electronics for 1 year from delivery, with joints, legs and battery at 6 months, or 3 months on units running AI Motion Mode. The Lynx M20 Pro has a 12 month full-unit warranty.
• Data governance arrives with the cameras. A robot that photographs gauges also photographs people, so where a route crosses occupied areas, retention and access policy needs writing before the first patrol.

What has changed and what has not

Frequently asked questions

Are quadruped robots getting cheaper?

At the entry end, clearly yes. A fully assembled walking platform with open SDK access now starts at $4,968 in our range, and a sensor-equipped development machine at $6,480. Industrial prices have held up better, because that money buys ingress protection, payload capacity and an autonomy stack rather than legs.

What is the difference between a legged robot and a wheeled one for site work?

Legs buy steps, thresholds, gravel and grating. Wheels buy endurance, speed and lower cost per meter. The honest test is to walk the route and count the obstacles that would stop a cart. If the answer is none, a wheeled platform will serve the same route for less.

Will quadrupeds be replaced by humanoids?

Not for inspection work in this timeframe. Humanoid platforms such as the LimX Dynamics Oli EDU are built around manipulation in human spaces, with 31 active degrees of freedom and 3 kg of single-arm payload. Carrying a thermal camera along a fixed route needs none of that.

What should I ask a vendor before buying a quadruped robot?

Ask for the mounting drawings and payload power budget, the ingress rating in writing, the warranty split between electronics and wear parts, whether fleet software is perpetual or licensed, and the lead time on a replacement leg. Those answers predict ownership better than anything on the datasheet.

Is it better to wait a year before buying?

Rarely. Mobility specifications are already flat across product families, so a later purchase mostly buys cheaper perception. Against that, a year of not running the route is a year with no baseline data and no internal case for a second machine.

Planning a purchase you will still be happy with in 2029

Buy for the interfaces rather than the specifications. A platform with documented mounts, power rails, open SDK access and a published data interface can absorb a better sensor in two years. A sealed appliance cannot. Our quadruped robot collection lists payload, power, endurance and ingress ratings on every product page, and each unit ships free with the manufacturer warranty.
