Robot arm kit guide: desktop six-axis arms for education
A robot arm kit is the cheapest honest way to learn industrial automation, because it fails the way a production arm fails. Joints have backlash. Grippers drop parts. The coordinate frame turns out to be rotated ninety degrees from what the drawing implied. Desktop arms from Wlkata and Elephant Robotics run the same toolchains integrators use in the field, including ROS, ROS 2, MATLAB, Python and Blockly, which is why they land in university labs and CTE classrooms rather than on toy shelves.
What follows covers what each kit includes, where four axes are genuinely enough, and whether the printed course material earns its place in the budget.
What a robot arm kit teaches that a simulator cannot
Simulation is free and infinitely patient. It is also wrong in the ways that matter. A simulated gripper never slips, a simulated joint has no dead band, and a simulated camera is calibrated to the micron. Students who only run code in CoppeliaSim or RoboDK write beautiful trajectories that come apart on first contact with a real part.
Physical hardware forces three lessons that stick. The first is the gap between repeatability and accuracy. An arm that returns to the same wrong place every time is repeatable but inaccurate, and the fix is calibration rather than a better controller. The Wlkata Mirobot is specified at 0.2 mm repeatability, tight enough that a student can see the difference between a carefully taught point and a sloppy one.
Second comes the tool centre point. Every gripper, suction cup and pen holder pushes the working point away from the wrist flange, and each one has to be measured and declared before a program lands where the drawing says it should. Third is cycle time. Motion that looks graceful at ten percent speed can shake an entire workcell at eighty percent, and the only way to find that limit is to push a real arm into it.
The Wlkata Mirobot kits compared

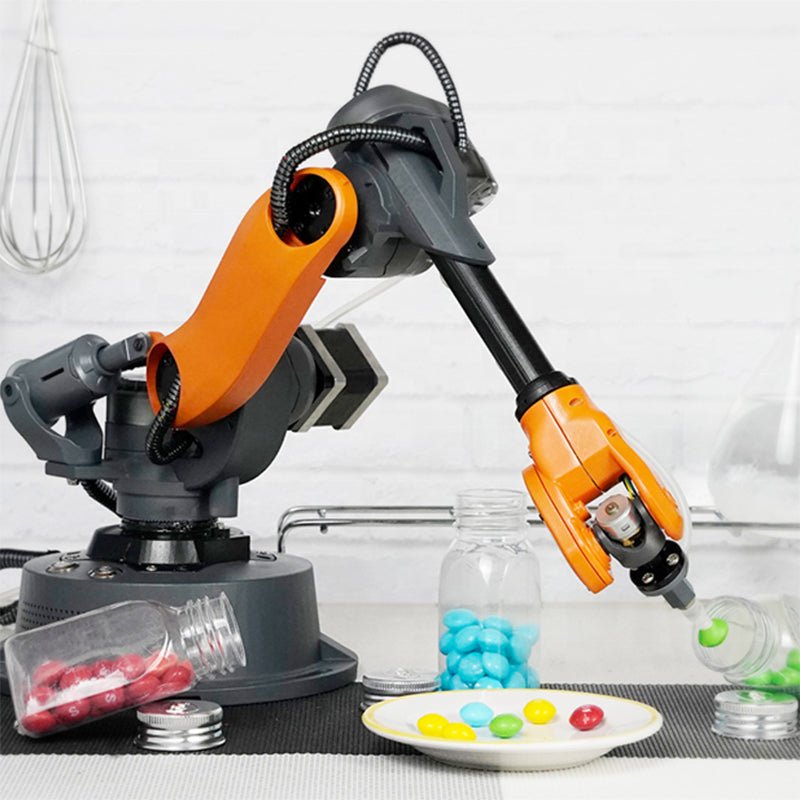

Wlkata builds the Mirobot in tiers that share one arm and differ mainly in tooling and course material. The Wlkata Mirobot Education Kit sits at $1,680 at the time of writing and ships with a servo gripper, a suction cup and a pen holder. The mechanics are identical up and down the range, so the real question is how many end effectors you want on day one and whether you need a larger working envelope.
| Kit | Price | Axes | Max reach | Repeatability | Standard payload |
|---|---|---|---|---|---|
| Wlkata Mirobot Education Kit | $1,680 | 6+1 | 315 mm | 0.2 mm | 250 g |
| WLKATA Mirobot Advanced Kit | $1,890 | 6+1 | 315 mm | 0.2 mm | 250 g |
| WLKATA MT4 Edu Kit | $1,380 | 4+1 | 359 mm | 0.1 mm | 500 g |
| Elephant Robotics myArm M750 | $1,999 | Not consistently published | Not consistently published | Not published | Not consistently published |
Read the payload figures carefully. The Mirobot is rated at 250 g standard and 400 g maximum when the load stays close to the desktop, and the gripper itself counts against that budget. A 250 g arm carrying a 150 g tool has 100 g left for the workpiece, which is a wooden block or a small 3D print, not a bench vise.
Advanced kit add-ons
Stepping up to the WLKATA Mirobot Advanced Kit at $1,890 buys tooling rather than a better arm. Where the Education Kit includes three end effectors, the Advanced Kit ships with five: a pen holder, a micro servo gripper, a suction cup, a two-finger soft gripper and a three-finger soft gripper. That difference matters more than it sounds, because gripper selection is the single most instructive constraint in a pick-and-place exercise.
Give a class one gripper and they will design every exercise around it. Give them five and they have to argue about which tool suits a foam cube versus a smooth acrylic tile, which is the argument industrial engineers actually have. Conveyor belts, sliding rails, the AI Vision Set and the AGV rover base all attach to the same arm and are sold separately, so a single Mirobot can grow into a small workcell over several terms rather than being replaced.
Four-axis versus six-axis for classrooms
Six axes are not automatically the right answer. The WLKATA MT4 Edu Kit is a 4+1 axis arm in a palletizer arrangement, priced at $1,380, and for a large share of teaching tasks it is the better machine.
A palletizer linkage keeps the end effector vertical no matter where the arm moves, which removes an entire class of orientation errors from a beginner's first programs. It also makes the structure stiffer. The MT4 is specified at 0.1 mm repeatability against the Mirobot's 0.2 mm, carries 500 g standard and 600 g maximum, reaches up to 359 mm, and weighs about 3 kg. For sorting, stacking, dispensing and most vision-guided pick tasks off a flat table, none of that gives anything away.
Where four axes fall short is any operation that needs the tool tilted: inserting a plug at an angle, deburring a curved edge, presenting a part to a fixed camera, or assembling something that does not sit flat. If your course covers orientation, inverse kinematics or wrist singularities, you need the six-axis machine. If it covers automation logic, sensors and vision, the four-axis arm frees up budget for peripherals.
Alternatives from Elephant Robotics
Elephant Robotics approaches teaching from the demonstration side rather than the programming side. The Elephant Robotics myArm M750 is $1,999 and works as an execution arm driven by a paired leader device, programmed in Python and ROS, and covered by a 365-day warranty on its mechanical, power and control systems.
The teaching model here is imitation learning. An instructor or student moves a leader device by hand, the follower arm mirrors the motion, and the recorded trajectory becomes training data. That workflow is closer to how modern manipulation research is done than to how a 1990s teach pendant worked, and it gives a class something to record and analyse in a single lesson rather than a single term.
Elephant Robotics also sells a wearable dual-arm exoskeleton controller, the myController S570, for classes that want to capture two-handed demonstrations. Understand the trade before committing to it. Teleoperation is fast to demonstrate and immediately engaging, but it teaches data collection rather than motion planning. A cohort that only ever puppets an arm never has to reason about joint limits or reachability.
Curriculum and course materials
Hardware without a course plan tends to sit in a cupboard by week four. Wlkata sells printed textbooks that map directly onto the Mirobot, and at $100 each they are the least expensive part of a station.
The Mirobot Textbook MATLAB runs to roughly 250 pages and targets MATLAB R2023b or later with the Robotics System, Image Processing and Computer Vision toolboxes. Around half its exercises require the physical arm; the rest run in simulation, which means a class with one arm and twenty laptops can still function. It assumes basic MATLAB fluency plus introductory linear algebra and calculus, so it is a university and upper-secondary resource rather than a middle-school one.
Budget accordingly. One arm, one textbook and a set of consumables is a defensible per-station cost, and the textbook is what turns a demonstration piece into a graded module.
Frequently asked questions
What is the difference between a robotic arm kit and a finished industrial arm?
Scale and safety rating, mostly. A desktop robotic arm kit uses the same joint architecture, coordinate conventions and programming interfaces as a factory arm, but carries grams instead of kilograms and does not require a safety fence or a certified controller. The concepts transfer directly. What does not transfer is duty cycle, since a teaching arm is not built to run three shifts a day for a decade.
Is a desktop robot arm accurate enough for real work?
For light assembly, dispensing, plotting and vision-guided sorting, yes. The Mirobot is specified at 0.2 mm repeatability and the MT4 at 0.1 mm, which comfortably exceeds what most benchtop tasks demand. The binding constraint is payload rather than precision. Once the tool and workpiece together pass a few hundred grams, you need a different class of machine.
Do robot building kits need assembly before use?
It varies by product, and it is worth checking before you plan a lesson around it. The MT4 line is explicitly designed to be dismantled and rebuilt, which is a teaching feature rather than an inconvenience. Arms sold as education or professional kits generally arrive assembled and calibrated, with the tooling, cabling and course material packed separately.
What software do these arms run?
Wlkata arms support ROS, ROS 2, MATLAB, CoppeliaSim, RoboDK, Omniverse, Arduino, Modbus, OpenCV and OpenMV, alongside Blockly for beginners. Elephant Robotics arms are driven from Python and ROS. That overlap matters if you already teach a robotics course: the arm should fit your existing toolchain rather than force a new one.
How many arms does a class of twenty need?
Fewer than instinct suggests. Because roughly half the textbook exercises run in simulation, a common pattern is one arm per four to six students on a rotation, with the rest of the group working in CoppeliaSim or MATLAB. Two or three stations covers a typical lab section, and the saved budget usually goes further on vision modules and consumables.
Where to start
Pick the arm by the tasks on your syllabus, not by the axis count on the box. Four-axis palletizer arms suit automation logic, sensing and vision. Six-axis arms are the right call once orientation, kinematics and singularities are on the reading list. Add the textbook at the same time as the hardware, because retrofitting a curriculum is harder than buying one.
