What Is a Quadruped Robot? Gaits, Payload and Terrain

A quadruped robot is a legged machine that walks on four limbs, almost always with three powered joints per leg for twelve actuated degrees of freedom in total. Four legs are the smallest number that can hold a machine upright while one foot is in the air, which is why the configuration dominates commercial legged robotics. This article covers how the legs are arranged, the gaits they cycle through, what payload and terrain figures really tell you, and why battery capacity sets the ceiling on everything else.

What a quadruped robot is, joint by joint

Each leg on a typical quadruped carries three actuators. The hip abduction joint swings the leg sideways away from the body and controls lateral balance. The hip flexion joint swings it forward and back, providing most of the stride. The knee extends and retracts the leg, setting foot height and absorbing impact on landing. Three joints per leg across four legs gives the twelve degrees of freedom quoted on almost every specification sheet, including every model in the Deep Robotics Lite3 Basic family.

Three is not arbitrary. It is the minimum needed to place a foot anywhere in three-dimensional space relative to the hip, which is exactly what a foothold planner commands. A fourth joint would orient the foot as well as position it, which matters for a hand and rarely for a foot.

Behind the joints sits the part buyers overlook: state estimation. A 9-axis inertial measurement unit, joint encoders and a control loop running at up to 1 kHz on the Lite3 platform together answer where the body is and how fast it is falling. Legs are the visible half of a quadruped; the estimator is the half that keeps it upright.

Gaits: how four legs take turns carrying the body

A gait is a repeating pattern of which feet are on the ground at which moment. The single most useful number describing one is duty factor: the fraction of each stride cycle a given foot spends in contact with the ground. Above 0.5 the robot is walking, because more than half the cycle is spent supporting. Below 0.5 there are moments with no support at all, and the robot is running.

Four patterns cover almost everything a commercial quadruped does. In a crawl, one leg swings at a time and three feet stay down, so the centre of mass can always be kept inside the triangle they form. This is statically stable: freeze the robot at any instant and it stays standing. It is also slow, and it is what a machine falls back to on genuinely difficult ground.

A trot moves diagonal pairs together, leaving two feet down. The support line is narrow, so the robot continuously catches a controlled fall, making it dynamically rather than statically stable. Trotting is the default cruise gait for nearly every commercial quadruped. Pace moves the lateral pairs instead, rolling the body noticeably, and appears more often in animals than robots. Bound and gallop move front and rear pairs in sequence with flight phases between them, used for peak speed and jumping.

Learned gaits are the current direction of travel. Rather than hand-tuning transitions, manufacturers train locomotion policies in simulation and deploy them to hardware, which is how Deep Robotics raises the Lite3 step height from 15 cm to 18 cm when AI Motion Mode is active. We have written more about where this is heading in future trends in quadruped robotics technology.

Terrain: step height, slope, and what actually stops one

Two published numbers describe most of a quadruped's terrain capability. Maximum step height is the tallest single obstacle it can lift a foot over and still transfer weight onto, and it is bounded by leg length and knee torque. Maximum slope is the steepest incline it can ascend before the foot slips or the body pitches past recovery, and it depends as much on foot friction as on actuation.

What stops a quadruped is rarely the number in that table. Loose surfaces defeat the friction assumption the controller relies on. Gaps narrower than a foot swallow it. Mud absorbs the impulse a leg needs to push against. Reflective or transparent obstacles confuse the sensors before the legs are ever tested. Published figures are measured on cooperative surfaces.

Payload, mass budget and battery limits

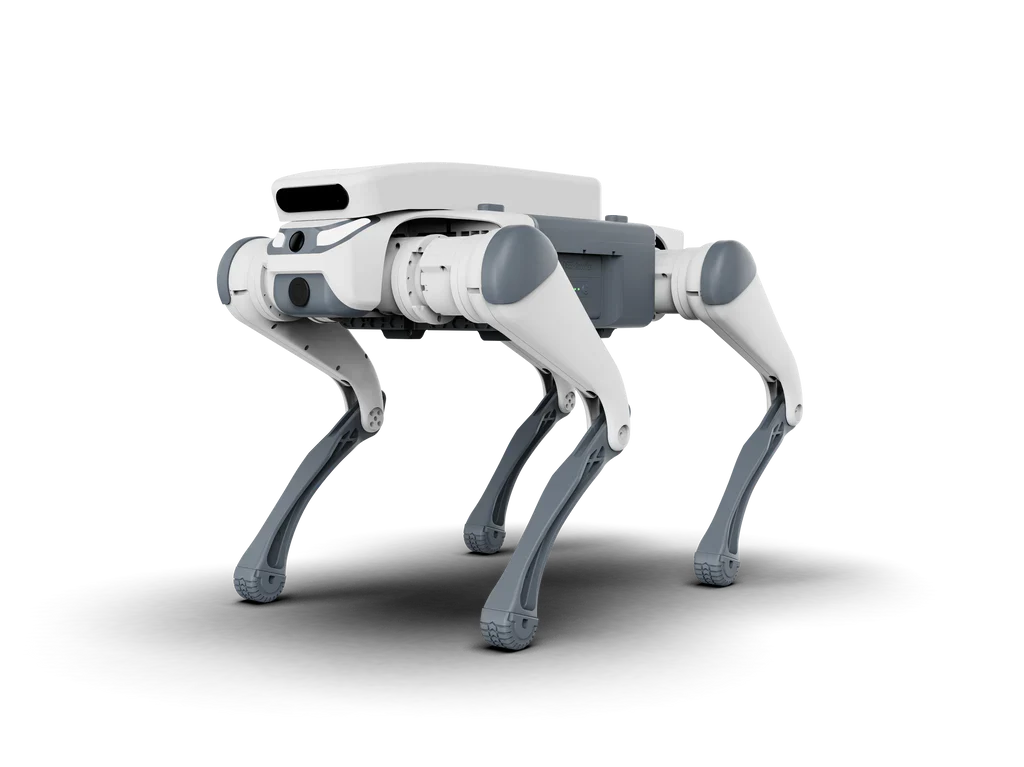

Payload on a legged robot is a shared budget, not a fixed allowance. Every gram of sensor, compute and mounting hardware the factory adds comes out of the same figure your equipment would use. The Lite3 range makes this unusually visible: rated payload falls from 5 kg on the Basic to 4 kg on the Pro and 2.5 kg on the LiDAR configuration, while total mass climbs from 12 kg to 13.5 kg. Same chassis, same legs, less left over.

Wheel-leg hybrids change the arithmetic

Putting a wheel at the end of each leg lets a machine roll on flat ground and walk only when it has to, which cuts energy use dramatically over mixed terrain. The Deep Robotics Lynx M20 Pro is built this way: 33 kg, 15 kg rated payload with a 50 kg maximum static load, 45-degree slopes, 25 cm continuous stairs and an 80 cm single step. It reaches 5 m/s in lab testing with 2 m/s recommended in operation, and runs up to 3 hours and 15 km unloaded, or 2.5 hours and 12 km at rated load.

Runtime shapes deployments more than any other constraint. Every Lite3 configuration is rated at 1.5 to 2 hours of continuous operation, and distance varies with sensor load: up to 5 km on the Basic, about 3.4 km on the Pro, about 2.7 km on the LiDAR version. Legged locomotion is expensive because the actuators do work simply holding the body up. Hence hot-swappable batteries across the range, and field plans built around swap cycles.

Perception decides where each foot lands

Blind quadrupeds walk well. They handle slopes, absorb small obstacles and recover from pushes using proprioception alone, because the estimator notices contact and the controller reacts. What they cannot do is choose. Stepping over a gap or onto a specific stair tread means knowing the geometry ahead before the foot commits.

That is the job of a mapping sensor. The Deep Robotics Lite3 LiDAR carries a Livox or Leishen 3D LiDAR module alongside an Intel RealSense D435i depth camera, with Faster-LIO SLAM and the Nav2 stack pre-configured for autonomous navigation. Depth cameras give dense short-range detail suited to obstacle avoidance; LiDAR gives sparser, longer-range, metrically accurate structure suited to mapping. Machines doing serious terrain work carry both.

Two legs versus four

Bipeds get the attention, but the physics favours four legs for most work. A quadruped always has a support polygon; a biped has at best a foot-sized rectangle. The consequence shows up in published figures.

The LimX Dynamics TRON1 EDU Multi-Modal Biped Robot measures up to 392 by 420 by 845 mm, weighs under 20 kg and carries up to 10 kg, a strong payload ratio. Read its terrain figures carefully, though: the published limits of 30-degree inclines and 20 cm obstacles apply in wheeled mode, and on point-foot or sole ends it stays under 1 m/s against the Lite3 Basic's 2.5 m/s and 40-degree slopes. The biped is not worse engineered; it is solving a harder balance problem with fewer contact points, and the specification reflects where the confidence lies. Two legs suit narrow human environments and humanoid form factors. Four legs suit almost everything else.

Frequently asked questions

What is a quadruped?

A quadruped is anything that moves on four legs. In robotics it refers to a machine with four articulated limbs, typically three powered joints on each, controlled by a balance system that decides which feet carry weight at any moment. The four-legged form is chosen because a lifted foot still leaves three points of support behind.

How many degrees of freedom does a four legged robot have?

Twelve is the standard: three actuated joints per leg across four legs. The joints handle sideways swing at the hip, forward and back swing at the hip, and knee extension. Every model in the Deep Robotics Lite3 range uses this arrangement. Three joints is the minimum needed to place a foot anywhere in space relative to its hip.

What is the difference between a walk and a trot in a quadruped robot dog?

In a walk or crawl, one foot lifts at a time and three stay planted, so the robot is stable even if frozen mid-stride. In a trot, diagonal pairs move together with only two feet down, and stability depends on continuous active correction. Trotting is faster and the usual cruise gait; crawling is reserved for difficult ground.

How much weight can a quadrupedal robot carry?

It depends on chassis size and what the factory has already fitted. Across the Deep Robotics Lite3 range, rated payload runs from 5 kg on the Basic down to 2.5 kg on the LiDAR configuration, because onboard sensors consume part of the same budget. The larger Lynx M20 Pro is rated for 15 kg, with a 50 kg maximum static load.

How long can a quadruped robot operate on one charge?

Roughly 1.5 to 2 hours of continuous operation for the Lite3 range, covering up to 5 km on the Basic and about 2.7 km on the LiDAR version. The Lynx M20 Pro manages up to 3 hours and 15 km unloaded. Hot-swappable batteries are standard, so field work is normally planned around battery swaps rather than a single charge.

Choosing a quadruped platform

Match the specification to the ground you intend to cross and the equipment you intend to carry, then check runtime against the length of your working session. Terrain figures assume cooperative surfaces, payload shrinks as sensors are added, and battery capacity limits everything. That is the arithmetic to do before buying.
