Overview
The WLKATA AI Vision Set is a comprehensive machine vision platform powered by OpenMV 3 technology, enabling artificial intelligence and computer vision applications with WLKATA robotic arms. This set combines a 640x480 pixel color camera with a dedicated vision stand, ring light, and monitor display for real-time visual feedback. The aluminum alloy construction and CNC manufacturing ensure durability and optical precision. Ideal for learning Python-based image processing, the system supports color recognition, barcode detection, image calibration, and advanced object detection. The detachable vision module and stand allow flexible installation on robotic arms or stationary positions for diverse application scenarios.
OpenMV 3's Python-based programming environment lowers the barrier to entry for machine vision development compared to traditional embedded vision platforms. Students can leverage familiar Python syntax to write vision algorithms, making it easier to transition from theoretical learning to hands-on implementation of AI-driven robotic systems.
The integrated ring light is crucial for consistent image quality in educational and light industrial environments where ambient lighting varies. This feature eliminates a common frustration in vision-based projects: the sensitivity to environmental lighting conditions. The included monitor display provides immediate visual feedback, allowing students to debug vision algorithms in real-time without needing to rely solely on console output or separate monitoring systems.
Technical Specifications
-
Camera Resolution: 640 x 480 pixels
-
Camera Sensor: 3 Million pixel OpenMV 3
-
Display: Integrated monitor screen for real-time feedback
-
Frame Construction: High-quality aluminum alloy
-
Manufacturing: CNC precision machined
-
Lighting System: Ring light for optimized image capture
-
Programming Language: Python-based
-
Module Design: Detachable for flexible installation
Key Features
-
Color Recognition: Python-based algorithms for identifying colors and color patterns
-
Barcode Detection: Scan and recognize barcodes for logistics and inventory applications
-
Shape Recognition: Detect and identify object shapes for automated sorting
-
Image Calibration: Fine-tune camera settings for optimal performance
-
Real-Time Display: Monitor camera feed with integrated screen
-
Optimal Lighting: Ring light system ensures consistent image quality
-
Modular Design: Detachable vision stand and camera for customized setups
-
Included Textbook: Comprehensive guide for machine vision learning
Applications
The AI Vision Set is perfect for educational institutions teaching computer vision, image processing, and robotic perception. It enables STEM students to learn practical AI and machine learning concepts through hands-on robotics applications. Industrial training centers can use it to teach automated quality inspection, object recognition, and vision-guided manipulation. It's ideal for developing smart sorting systems, barcode-based logistics automation, and color-based part classification. Researchers and hobbyists can prototype vision-guided robotic applications ranging from simple color sorting to complex industrial inspection systems.

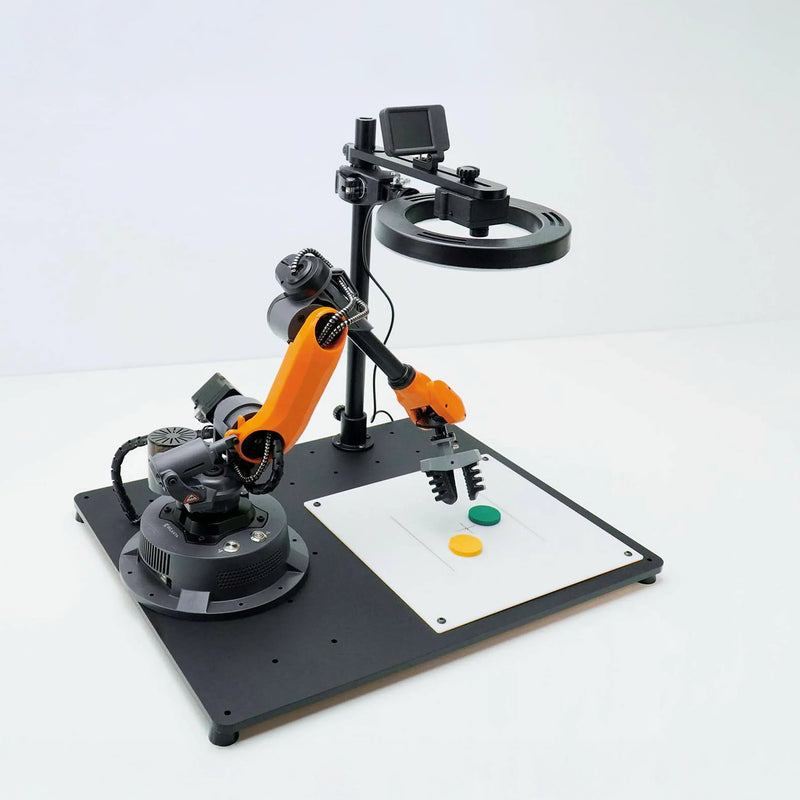

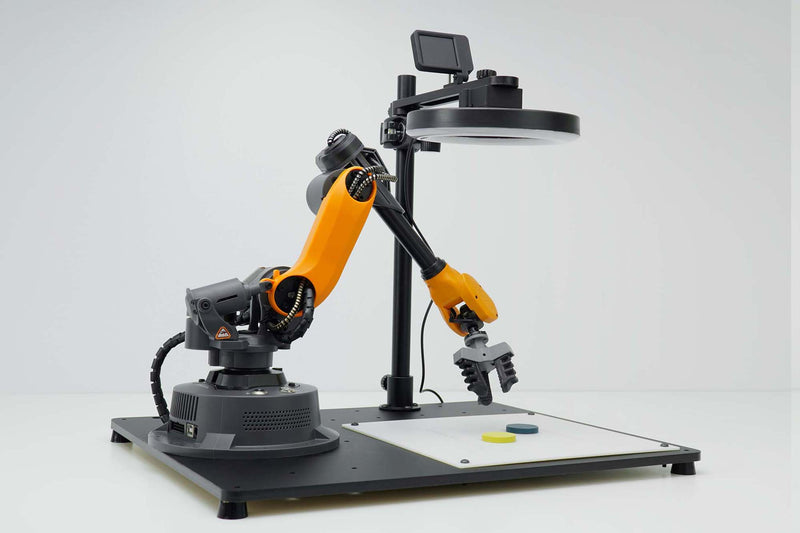

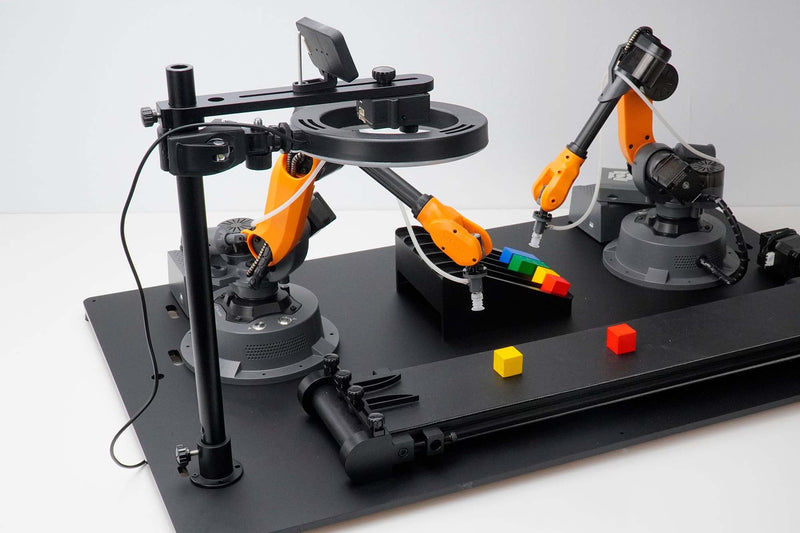

Prototype and pre-production environments use the vision system for automated quality inspection validation: the camera identifies defects, misalignments, or color deviations, and the Mirobot arm sorts accordingly. The set supports OpenCV-based custom pipeline development, giving advanced users full control over image processing parameters while beginners work through the included sample projects. Integration with the Conveyor Belt and Sliding Rail accessories creates a complete vision-guided automation cell for industry training programs.
Setup and Getting Started
Assemble the vision stand according to documentation. Mount the OpenMV 3 camera module to the stand, ensuring proper alignment. Connect the ring light power supply and verify illumination. Install the display monitor on the stand or position it nearby. Connect the camera to your robot controller or development board via USB or the appropriate communication interface. Launch OpenMV IDE on your computer and connect to the camera. Start with the included example scripts for color detection, then progress to more complex vision tasks like barcode scanning and shape recognition. Use the monitor to verify your image processing results in real-time.
What's Included
-
Vision Camera: OpenMV 3 vision camera module with onboard image processing
-

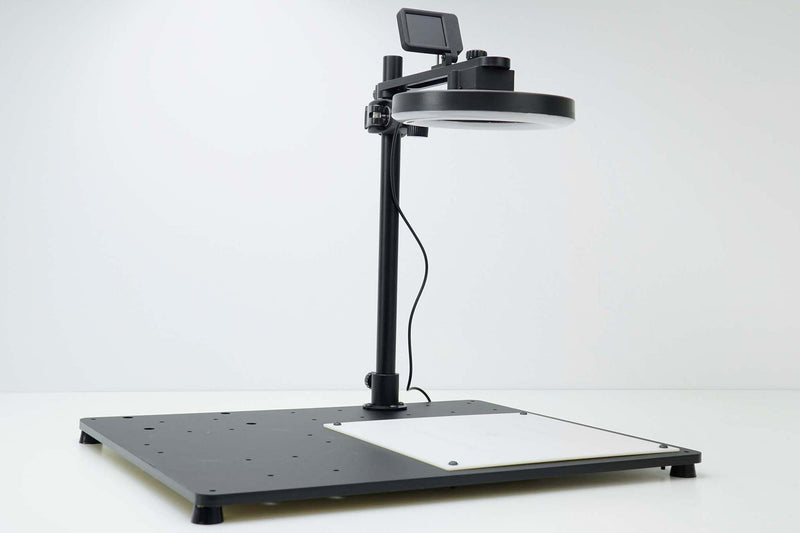

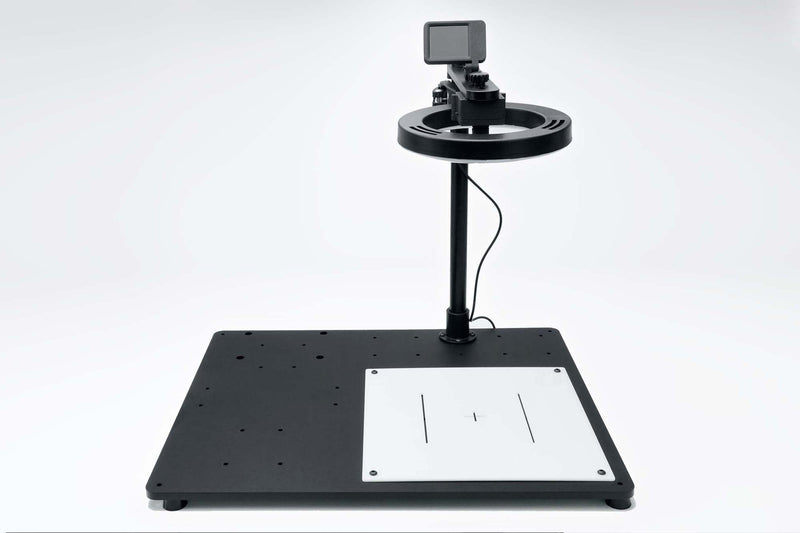

Camera Stand: CNC-machined aluminum alloy vision stand assembly for stable mounting
-

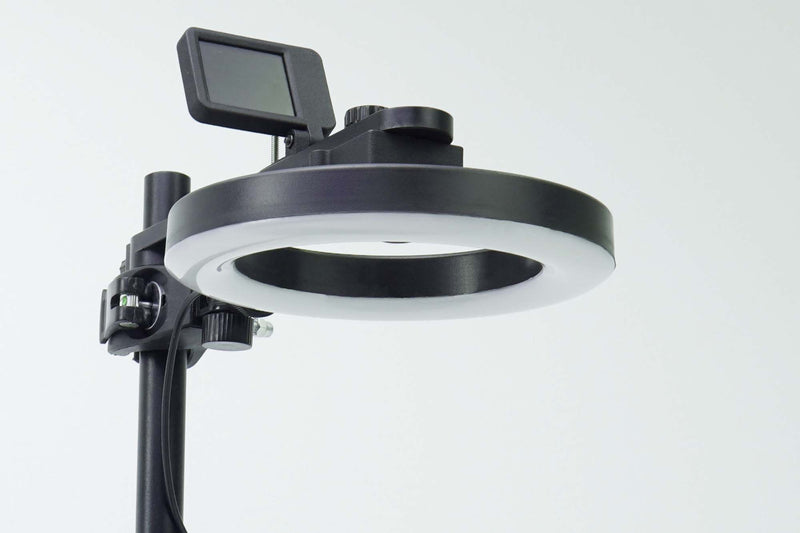

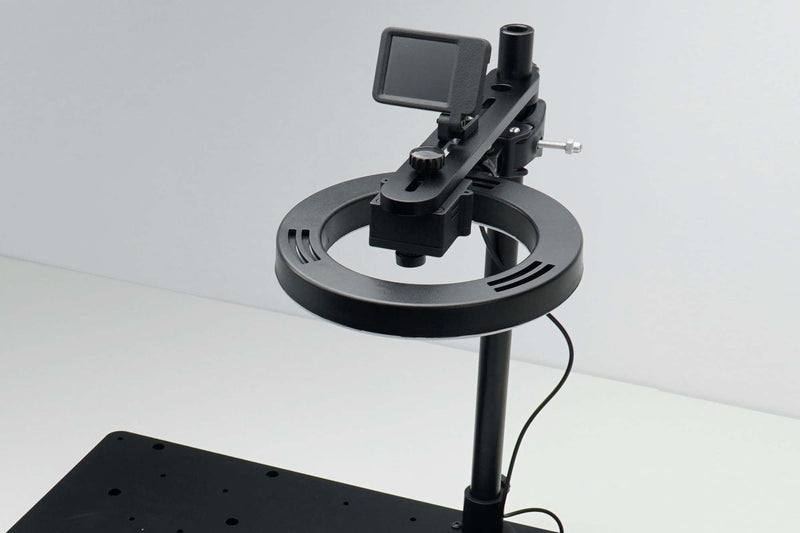

Illumination System: Ring light illumination system for consistent object lighting
-
Monitor Display: Monitor display screen for real-time vision feed and debugging
-
Mounting Hardware: Camera mounting hardware and adjustment brackets
-
Cable Set: USB and power cables for camera and display connections
-
Textbook: Comprehensive textbook with vision processing experiments
-
Software: Example Python scripts and code for object detection and classification
Documentation and Resources
Warranty Information
This product is covered by the WLKATA Product Warranty Policy. WLKATA warrants that products purchased legally or obtained through operational activities are eligible for warranty service provided by Wristline Inc. (WLKATA) or authorized agents.
Spare Parts: 3-Month, 6-Month, or 1-Year Warranty (varies by part)
Consumables: Not Covered Under Warranty
Scope of Free Warranty:
- Valid proof of purchase confirming the product is within the warranty period, with non-human performance failures or quality problems
- Paid warranty extension customers with non-human-caused failures during the extension period
- After paid warranty, replacement parts receive a 90-day warranty
Not Covered (Paid Warranty applies):
- Product exceeds the warranty period
- Unable to provide valid proof for warranty or invoice
- Altered warranty proof content or mismatch with physical identification
- Failures from lack of proper use and maintenance per the user manual
- Unauthorized disassembly, maintenance, or modification
- Improper use including immersion in liquid, dampness, mold, insect damage, or animal damage
- Damage caused by force majeure
WLKATA bears shipping costs for free warranty claims (both directions). Paid warranty extension is available by negotiation.
