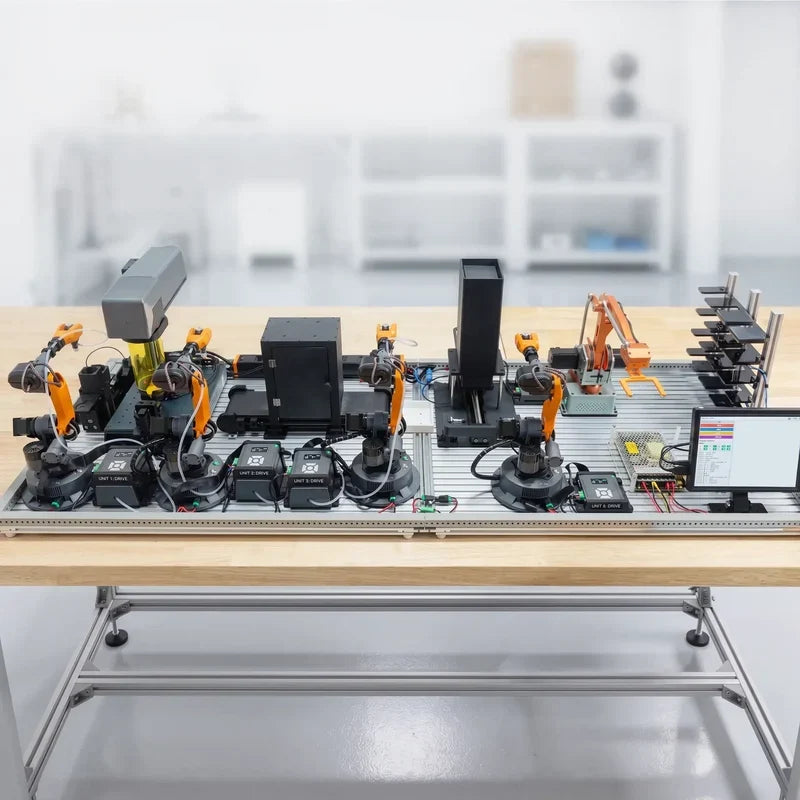

WLKATA Engraved Souvenirs Manufacturing Line: A Desktop Training Cell

The WLKATA Engraved Souvenirs Manufacturing Line is a benchtop training cell that engraves, inspects, packages, and sorts a souvenir blank using a WLKATA MT4 arm, a WLKATA Mirobot arm, OpenCV AI vision, a laser engraving station, and a conveyor. If you run a CTE, high school, university, or maker program and want one platform that teaches a full production workflow, this article covers what the line does, what ships in the box, which controller options exist, and how to run it safely.

What does this training cell actually do?

The line simulates a complete personalized-product manufacturing workflow. A material feeding unit releases product blanks onto the conveyor, which transfers them between stations. The laser engraving unit personalizes each part by surface marking. The OpenCV AI vision unit inspects the engraved part. The arms then package the finished parts and sort them into a sensor-based smart warehousing unit. It is the same production model used by personalized-gift and custom-merchandise manufacturers, shrunk to a desk.

The engraving is real, not simulated. WLKATA cites bookmarks, nameplates, chess pieces, and seals as example products, so students can take home the items they programmed the cell to make. The store listing positions the line for CTE, high school, university, and maker robotics programs, and because it uses standard WLKATA arms and accessories, its components extend into other WLKATA cells and mini production lines in the Training Cells and Production Lines collection.

What ships in the box?

The store listing's shipping list covers the following:

• WLKATA MT4 metal palletizer arm (x1)
• WLKATA Mirobot 6-axis arm (x1)
• Laser engraving station
• OpenCV-based AI vision system
• WLKATA conveyor belt set (x1), with a photoelectric sensor and adjustable speed
• Base plate with packaging and sorting accessories
• Main control box with touch-screen interface (x1)
• Installation materials and documentation access

The main controller is selected when you add the line to your cart, with three options: an IPC (industrial PC controller), a Siemens S7-1200 PLC that includes single-seat licensed software, or an Allen-Bradley Micro850 PLC with free CCW software. The line also includes an emergency stop unit and status indicators. Documentation lives on WLKATA's download center and documentation portal, with a Python SDK on GitHub, a robotic vision textbook on the WLKATA Academy, and video tutorials.

Why use two different arms?

Real production lines use specialized robots at different stations, and this cell copies that. The MT4's 4+1 axis palletizing kinematics keep the end effector pointing down, which suits high-precision vertical pick-and-place and end-of-line palletizing: the packaging and sort stages. The Mirobot's 6+1 axis flexibility suits varied-orientation manipulation: the inspect and engrave stages, where parts may arrive at unpredictable angles. Mixing the two teaches why different kinematic types fit different production stages.

Both arms are programmed with Blockly, teach-and-play, and Python in WLKATA Studio, and the open APIs support multi-station and multi-robot coordination across the full line. The touch-screen master control gives operators a panel to run and monitor the line the way a real operator panel does. The same MT4 and Mirobot arms are sold as standalone kits; the WLKATA kit comparison lines up their specs side by side.

How do the engraving and vision stations work?

The laser engraving station

The engraving unit is a small fiber laser marking machine: 2 W, 1064 nm wavelength, a 70 by 70 mm (2.8 by 2.8 inch) marking area, in a safety-enclosed design. A 2 W marking laser is built for surface marking on light materials, not for cutting. The marking unit takes custom designs through its marking software, so students can draw a pattern in a standard graphics tool, load it, set the laser parameters, and run it as part of the coordinated production run. WLKATA does not publish a list of supported design file formats, so ask us if you need a specific format confirmed.

The included Processing Units training project covers integrating the marking unit into the line: setting up a marking job, sequencing it with feeding, transfer, and inspection, and laser safety. It does not go deep into laser physics or beam optics; the cell teaches the laser as a process step in a smart factory.

The OpenCV vision unit

The vision unit uses a Python-programmable 1920 by 1080 camera, so students work with standard OpenCV techniques: image acquisition, color-space conversion, color detection, edge detection, contour finding, shape recognition, and template matching, applied to real-time defect detection and quality inspection. WLKATA's curriculum covers OpenCV image recognition and quality inspection. Deep-learning frameworks are not part of the included material, though the Python environment leaves room for advanced students to add their own.

Capstone ideas that fit the cell include custom vision models for part inspection, parametric or generative engraving patterns, barcode or QR-code reading for order routing, multi-product runs with priority scheduling, and IoT integration with cloud platforms.

Which controller should you pick?

The controller decides what the controls side of the curriculum looks like, so settle it before you order:

• IPC: an industrial PC controller.
• Siemens S7-1200 PLC: single-seat licensed software is included.
• Allen-Bradley Micro850 PLC: the CCW software is free.

Match the choice to the PLC platform your instructors already teach or that local employers use, and confirm who will manage the software licenses, instructor files, and controller access. For a Haro380-based path to PLC work on a single arm, see the robotic kits buying guide.

How do you set up and run it safely?

The store listing outlines six setup steps: unbox and inspect the arms, engraving station, vision system, conveyor, and accessories; mount them on the base following the included materials; connect the main control box and touch screen and link the arms, engraver, vision system, and conveyor; install WLKATA Studio from the WLKATA Download Center and load the project files; calibrate the arms, the vision system, and the coordinate frames while observing the laser-safety guidance; then run a full engrave, inspect, package, and sort sequence and extend it.

Safety planning follows from the components. The laser unit has a safety-enclosed design, the line includes an emergency stop unit and status indicators, and the arms are small desktop robots rather than industrial-scale equipment. Educators still enforce standard laser practices: laser-safety goggles matched to the 1064 nm wavelength, the enclosure closed during marking, laser-safety signage, and a designated laser-safety officer. WLKATA also requires homing the arms at every power-up, after any emergency stop and RESET, and whenever the software is reopened, and nobody reaches into the movement range while an arm runs.

The takeaway

The WLKATA Engraved Souvenirs Manufacturing Line is a compact, multi-station training cell for programs that want practical exposure to a smart-factory workflow. Its value is in connecting two arm types, laser engraving, vision inspection, conveyor transport, packaging, and warehousing into one teachable system, with a real product at the end. Review the current product listing, settle the controller option, and contact us with your lab space and training goals for a quote.
