Robot Dog Kit or Ready-to-Deploy Quadruped: How to Choose
A robot dog kit and a ready-to-deploy quadruped can look almost identical in photographs and differ by a year of engineering time. The kit gives you legs, a controller and an SDK, and leaves perception, compute, mounting and integration to you. The finished platform arrives with sensors fitted and the software stack already talking to itself. Both are legitimate purchases, and the wrong one costs far more than the price difference.
What a robot dog kit actually means in this market
"Kit" is doing a lot of work as a word. In consumer robotics it usually means a box of parts and a screwdriver. In quadrupeds it almost never does. Nobody credible sells unassembled leg actuators, because joint torque, thermal design and the balance controller are the hard parts and no manufacturer hands them over half-finished.
What "kit" means here is a bare development platform: a fully assembled, walking robot with an open SDK and no perception or compute payload. You buy the locomotion and you supply the intelligence. That is a completely different proposition from a screwdriver kit, and the assembly you are signing up for is software and systems integration rather than mechanical.
There is a genuinely modular tier below that, in compound kits that pair a small arm with a wheeled base. Those are true build-and-learn products, and they suit a classroom far better than a legged platform does. The case for robotic kits in STEM teaching rests on exactly that difference: the learning happens in the integration, not in the walking.
Bare development platforms: what you get and what you owe

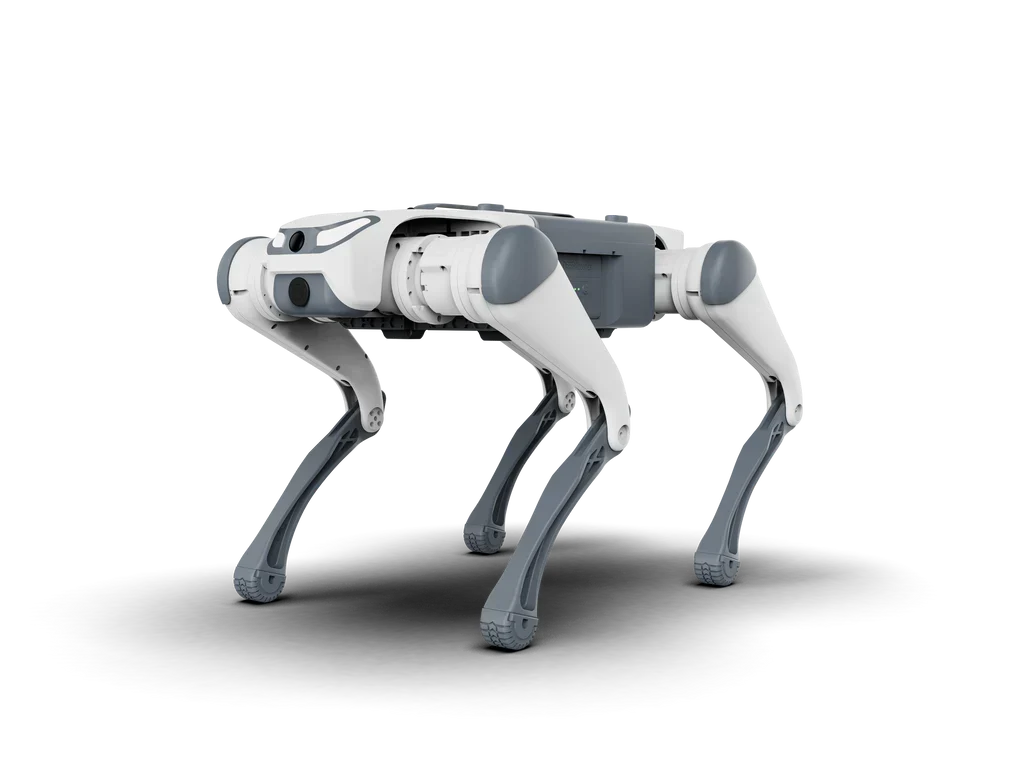

The Deep Robotics Lite3 Basic AI is the clearest example of the category at $4,968 at the time of writing. It weighs 12 kg with the battery, carries 5 kg rated payload, walks at up to 2.5 m/s, handles 40 degree slopes and 15 cm steps as standard, and covers up to 5 km of range. It has 12 degrees of freedom, three joints per leg, and a control loop running at up to 1 kHz.
What arrives in the box is the robot with firmware installed, a hot-swappable battery, an AC adapter, a wireless gamepad, the manuals, open SDK and API access in Python and C++, ROS1 and ROS2 packages, and access to the reinforcement-learning deployment repository. What does not arrive is any perception sensor, any onboard AI compute module, and any external monitoring support.
One step up sits the Deep Robotics Lite3 Venture at $6,480, which keeps the open workflow but includes a 9-axis IMU, joint encoders, a wide-angle camera and ultrasonic radar. Rated payload is 4.5 kg, weight is 12.2 kg with battery, and range reaches 4 km on the 28.8 V, 4.4 Ah pack. The extra outlay buys the sensors you would otherwise spend a month selecting, mounting and calibrating yourself.
Ready to deploy: what the extra money buys
The Deep Robotics Lite3 Pro is $12,510 and represents the other end of the same chassis. Rated payload is 4 kg and weight is 12.9 kg including battery and sensor package. It ships with an Intel RealSense D435i depth camera, a wide-angle camera and dual ultrasonic radars running against an NVIDIA Jetson Xavier NX, on Ubuntu 20.04 with ROS1 and ROS2. It publishes camera feeds, point clouds, joint states and IMU data on standard ROS 2 topics, and it is rated IP54.
Compare that against the Basic AI and the gap is substantial. Look at what sits inside it: a depth camera, a compute module, mounting hardware, a wiring loom, the thermal work to keep the compute alive on a walking robot, the calibration between camera and body frame, and a software stack that already publishes to ROS 2 topics you can subscribe to on day one. Priced as an engineering project rather than a parts list, that gap is not obviously generous to the vendor.
Two other differences matter for a deployment rather than a lab. The Pro carries an IP54 rating where the Basic AI has no assigned rating, and the Pro's sensor integration has been validated by the manufacturer, which is the part your warranty conversation depends on if something stops working.
Compound kits and the cheaper path to mobile manipulation
If what you actually want is a platform to teach mapping, localization, motion planning and mobile grasping, legs may be the expensive way to get there. The Elephant Robotics LIMO Cobot Compound Robot is $4,499 and pairs a 6-axis myCobot 280 M5 arm with an AgileX LIMO PRO mobile base.
The arm has a 250 g payload and a 280 mm working radius, and the base adds 5 kg of deck capacity on top. Runtime is roughly 4 hours with the arm idle and 2 to 3 hours under active manipulation, with about 2 hours to charge from empty. The base carries an NVIDIA Jetson Orin Nano, an EAI T-mini Pro LiDAR, an Orbbec Dabai depth camera and an IMU, and the whole thing arrives with the arm pre-mounted.
For a university lab or a robotics club, that combination teaches more of the stack per dollar than a bare quadruped does, because you get manipulation and navigation together. It will not climb stairs. If your curriculum does not need stairs, that is not a shortcoming.
The integration work nobody quotes you for
Assume you buy the bare platform. Here is the work that lands on your desk, in the order it usually arrives.
- Sensor selection and mounting. Choosing a camera or LiDAR is the easy half. Designing a mount that does not shift the center of mass is the other half, and Deep Robotics is explicit that off-center loads reduce stair-climbing performance on the Lite3.
- Power. Your payload needs a supply the robot can provide, at a voltage it expects, with enough headroom that a current spike does not brown out the compute module.
- Compute and thermals. An AI compute module on a walking robot has to be cooled while sealed against dust. This is where more schedules slip than anywhere else.
- Calibration. Every sensor needs a known transform to the robot body frame, and it has to survive being knocked.
- Software. The SDK gives you locomotion commands and telemetry. Navigation, route teaching, data logging and whatever your application does are yours to write.
- Support boundaries. This is the one people underestimate. The manufacturer supports the robot as sold. Once you have added your own compute and sensors, diagnosing a fault becomes your job first and theirs second, and warranty conversations get slower.
Budget engineer time honestly. Two to four months of one competent robotics engineer is realistic for taking a bare quadruped to a working application, and at loaded cost that comfortably exceeds the price gap between the Basic AI and the Pro. The kit is cheaper to buy and dearer to own.
Kit against ready to deploy, side by side
| Platform | Price | Perception included | Rated payload | Ingress rating | Best suited to |
|---|---|---|---|---|---|
| Elephant Robotics LIMO Cobot Compound Robot | $4,499 | LiDAR, depth camera, IMU, Jetson Orin Nano | 250 g arm, 5 kg deck | Not stated | Teaching navigation and mobile manipulation |
| Deep Robotics Lite3 Basic AI | $4,968 | None | 5 kg | Not assigned | Locomotion and reinforcement-learning research |
| Deep Robotics Lite3 Venture | $6,480 | IMU, wide-angle camera, ultrasonic radar | 4.5 kg | Not stated | Development with a head start on sensing |
| Deep Robotics Lite3 Pro | $12,510 | Depth camera, wide-angle camera, dual ultrasonic radar, Jetson Xavier NX | 4 kg | IP54 | Deployment with a short time to first result |
Frequently asked questions
Can you build a robot dog from a kit at home?
Open-source designs exist, and people do build them. Expect to fabricate or source actuators, tune a balance controller and accept a machine that walks tentatively. If the goal is to learn how legged locomotion works, that is time well spent. If the goal is a robot that does a job next quarter, buy an assembled development platform and put the effort into the application layer instead.
What is the cheapest quadruped kit that actually works?
In our range the Deep Robotics Lite3 Basic AI at $4,968 is the lowest-cost fully assembled quadruped with open SDK and ROS access. It walks properly out of the box and leaves perception and compute to you. Below that price point you are generally looking at toys or unassembled open-source builds rather than platforms that will carry a payload and survive a work site.
Does a canine robot need programming experience?
To drive one, no. Every Lite3 variant ships with a wireless gamepad and works manually from the moment it is charged. To do anything useful and repeatable, yes. Route teaching, data capture and autonomy all run through the SDK in Python or C++, or through ROS 1 and ROS 2, so someone on the team needs to be comfortable there.
Is a dogbot or a wheeled robot better for a school lab?
For most teaching purposes, wheels. A compound platform such as the LIMO Cobot at $4,499 gives students navigation, perception and manipulation in one system, and it is far more forgiving of a dropped battery or a bad parameter. Choose legs when the curriculum specifically covers dynamic balance, contact-rich locomotion or reinforcement learning for control.
Will building from a kit void the warranty?
Adding payloads to the documented mounting points and using the published SDK does not void anything. Opening joints, modifying firmware outside the supported interfaces or altering the power system will. Deep Robotics warrants Lite3 electronics for 1 year from delivery, with joints, legs and battery covered for 6 months, or 3 months on units running AI Motion Mode. Keep modifications to the documented interfaces and the coverage stands.
Which one to buy
Buy the kit when the robot is the research subject and you have engineering time on staff. Buy the ready-to-deploy platform when the robot is a tool and the deadline is real. Buy the compound kit when the point is to teach the whole stack rather than to walk over anything. Our quadruped robot range lists payload, sensors and ingress ratings on every product page so you can make that call on specifications rather than photographs, and every unit ships free with the full manufacturer warranty.
